RP030-0200-420 - Datasheet
MBA
Category Information

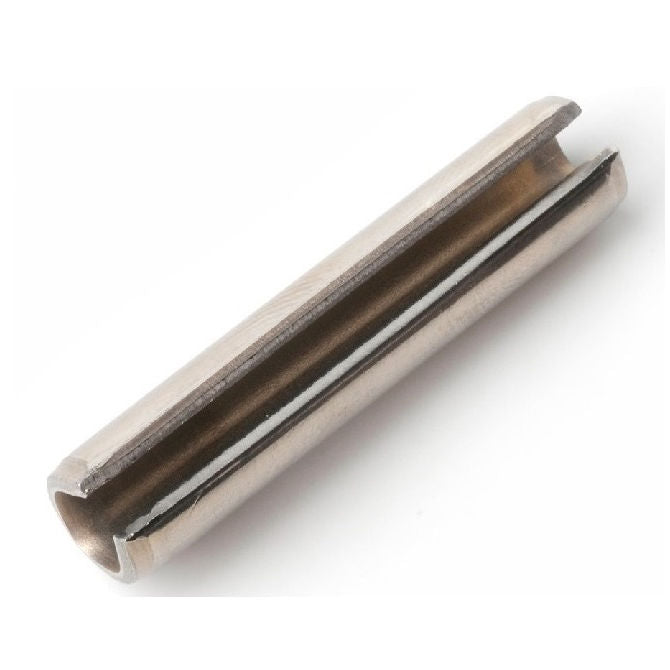

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
3.00
mm
(Equiv. 0.118 in.) - Length (L)
20.00
mm
(Equiv. 0.787 in.) - Free Diameter
3.30
mm
(Equiv. 0.13 in.) - Thickness (S) 0.65 mm
- Chamfer Length (cL) 0.20-1.00 mm
- Chamfer Diameter (cD) 2.9 mm
- Standard ASME B18.8.4M Type B
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPMS-030-020
- NoCor SPMS-030-020-420SS
- NoCor SPMSP-030-020-A
- MD1481MXO030X020
- SPMSP030020A
- SPMS030020
- SPMS030020420SS
