RP030-0200-4 - Datasheet
MBA
Category Information

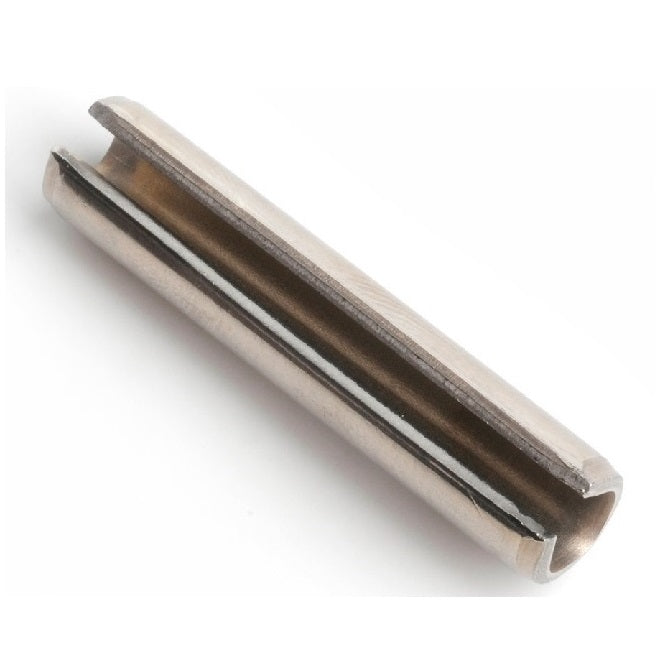

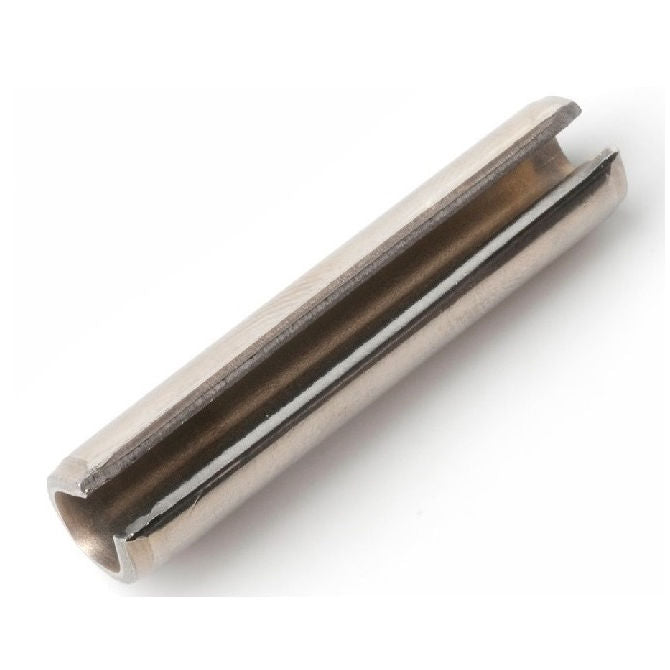

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Diameter (D)
:
3.00
mm
(Equiv. 0.118 in.) - Length (L)
20.00
mm
(Equiv. 0.787 in.) - Free Diameter
3.30
mm
(Equiv. 0.13 in.) - Thickness (S) 0.60 mm
- Chamfer Length (cL) 0.50-0.70 mm
- Standard DIN7343/ISO8750
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A410
- NoCor SPM3P-030-020-I
- NoCor SPMS-030-020-304SS
- SRP320
- SRP3-20
- SPM3P030020I
- SPMS030020304SS
