Miniature Bearings Australia
0T-0030-0021-0300-BR - Datasheet
MBA
Category Information

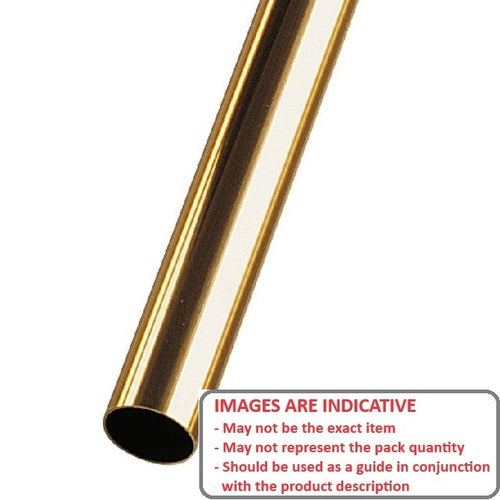

Tube - Round - BrassBrass Round Tube. Hollow round tubing for general hobby applications.
- Includes K&S Metals range and more
- May be slightly oversized on OD so some reworking might be required before fitting closely mating parts.
- This product is not recommended for use as a bearing shaft.
- We suggest you use items from the category - Shafting - Ground for bearing shaft.
- Many sizes fit neatly into larger sizes to allow for telescoping size applications. Some items may be available in longer or shorter lengths. E-mail sales@smallparts.com.au with enquiries.
Product Data
- OD (D)
:
3.00
mm
+/- 0.051
(Equiv. 0.118 in.) - ID (d)
2.10
mm
+/- 0.076
(Equiv. 0.083 in.) - Length (L)
300
mm
+/- 1.0
(Equiv. 11.811 in.) - Temper Alloy 260 1/2-3/4 hard mill finish ASTM B135
- Quantity Per Card 4
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- 88605K22
- KSE KS9821
- KSE KSE-M0031
- KSEM0031
