CP-030-HUB-J-OC-15 - Datasheet
MBA
Category Information
Couplings - Oldham Clamp Style - HubsHubs Oldham Clamp Style Couplings. 0.06 to 44 Nm. Max Speed: 3000 RPM.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Single hubs
- This type of coupling is ideal for applications where it is difficult to move shafts to allow the coupling to be installed. The centre disk can be fitted after the hubs have been assembled and aligned.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

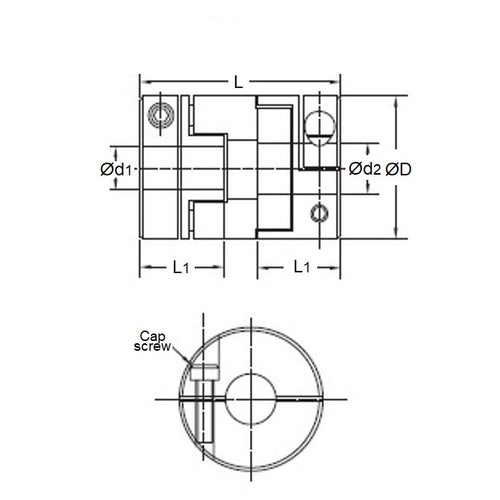

- Bore
:
3
mm
(Equiv. 0.118 in.) - Size Size 15
- OD
15.00
mm

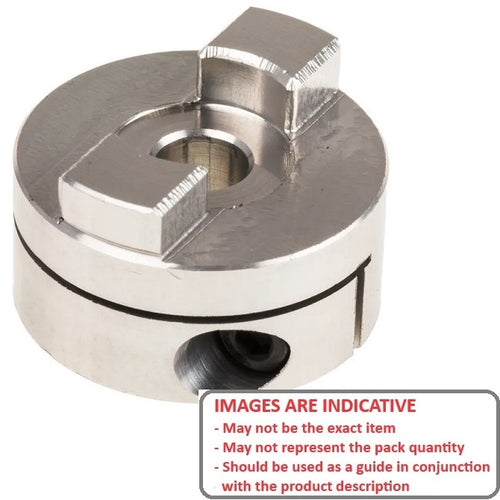

(Equiv. 0.591 in.) - Description Single Hub
- Hub Type Split Hub
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- A5A15M331503
- A 5A15M331503
