P-H-039-250C - Datasheet

MBA

Category Information

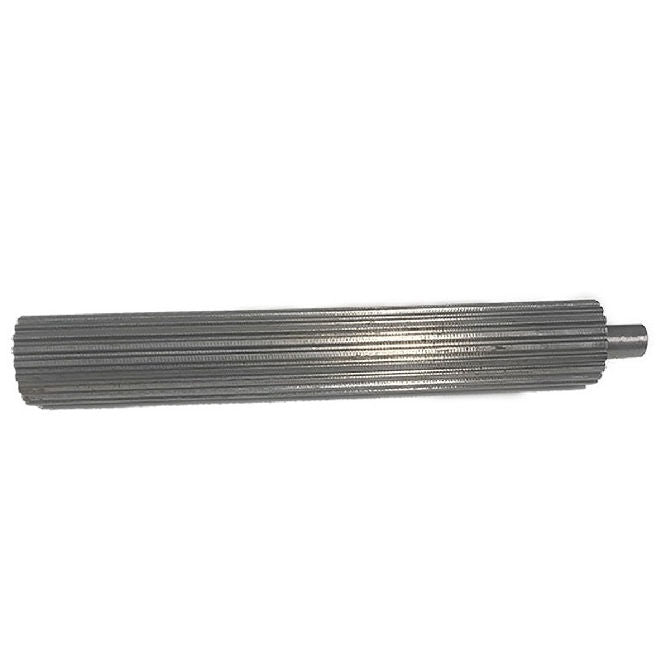

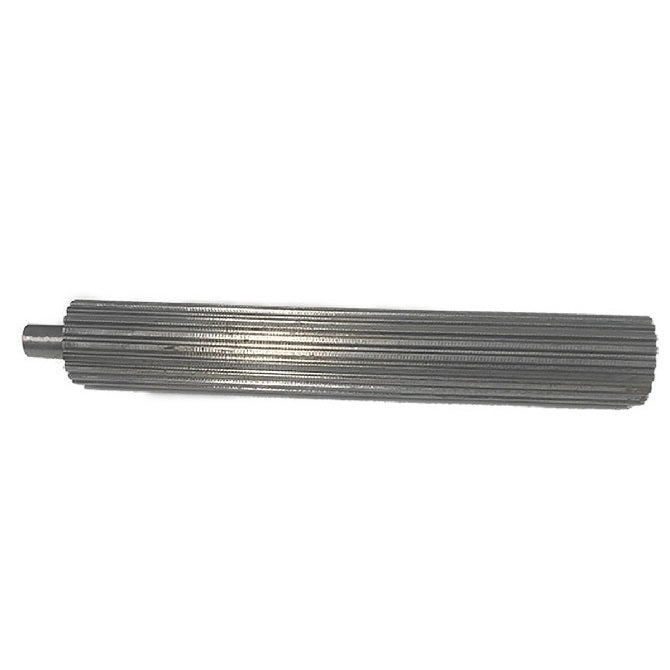

Pulleys - Inch Timing Stock - 12.700mm Pitch H - Carbon Steel

Carbon Steel 12.700mm Pitch H Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
  • After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.

Product Data

  • Number of Teeth : 39
  • Min. Usable Length (L) 250.0 mm
    (Equiv. 9.843 in.)
  • Pitch Diameter (PD) 157.59 mm
    (Equiv. 6.204 in.)
  • Outside Diameter (OD) 156.36 mm
  • Shank Diameter (D1) 25.40 mm
  • Shank Length (Sl) 25.4 mm
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 39H-PS10S
  • 39HPS10S
