Miniature Bearings Australia
CSN-0396-032 - Datasheet
MBA
Category Information

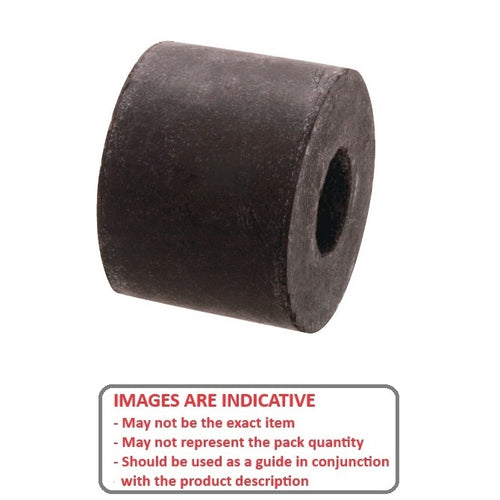

Mounts - Bumpers - Neoprene SpringsNeoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.
- An expanded range may be available on special order. Please enquire.
- Major advantages include high loads, increased durability, better performance, no maintenance and long life.
Product Data

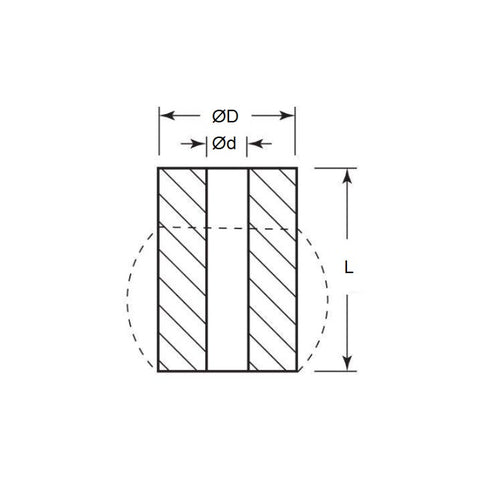

- Outside Diameter (A) : 39.60 mm
- Inside Diameter (B) 13.5 mm
- Free Length (L) 31.8 mm
- Spring Rate 313.5 N/mm Deflection +/- 20 Perc
- Max. Rec. Deflection 11.18 mm
- Approx. Load at Max Deflection 292.2 Kg
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® BES-3540
- BES3540
