SETG - Datasheet

MBA

Category Information

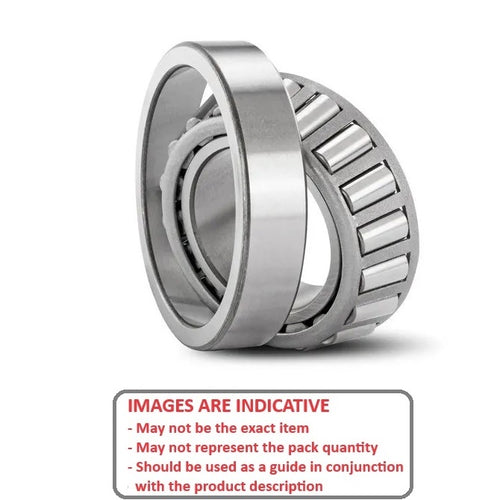

Bearings - Tapered Roller Set - Single Row - Inch

Inch Single Row Tapered Roller Set Bearings. Common automotive sets include cup and cone

  • Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
  • Matched sets include the cup and the cone.
  • An expanded range may be available on special order. Please enquire.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Inside Diameter : 39.688 mm
    (Equiv. 1.563 in.)
  • Outside Diameter 73.025 mm
    (Equiv. 2.875 in.)
  • Assembled Width 18.500 mm
    (Equiv. 0.728 in.)
  • Description SETG U298/91001
  • Material Chrome Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    View full details
    SETGDiagramSETGImage
