TLB-1615-0381 - Datasheet
MBA
Category Information

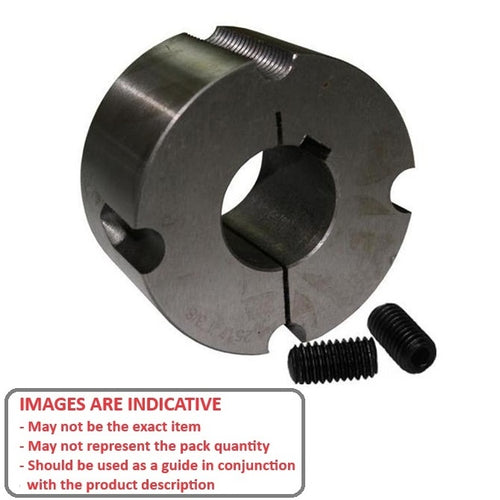

Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

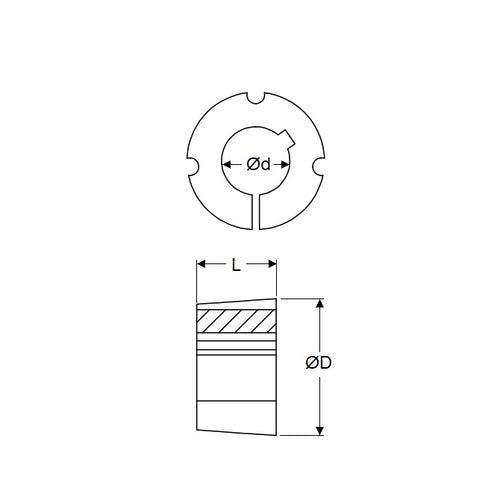

- Bore (d)
:
38.100
mm
(Equiv. 1.5 in.) - Large End Dia. (D)
57.0
mm
(Equiv. 2.244 in.) - Length (L)
38.1
mm
(Equiv. 1.5 in.) - Taperlock Series 1615
- No of Screws 2
- Screw Size 3/8x5/8 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 57095K179
- TLB1615112
- TLB-1615-1-1-2
