Miniature Bearings Australia
W0381-F-054-0051-K-C - Datasheet
MBA
Category Information

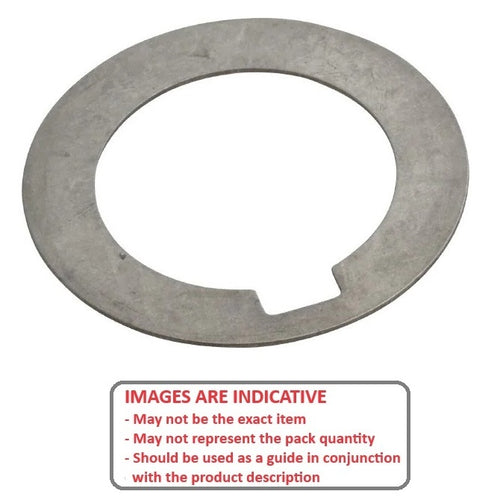

Spacers - ArborArbor Spacers. Flat arbor shim washers with keyway groove.
- Spacers with a notch or tab, fit snugly on keyed shafts to align and space gears, sprockets, and bearings.
- Often used to accurately space saw blades, cutters and other machinery.
Product Data

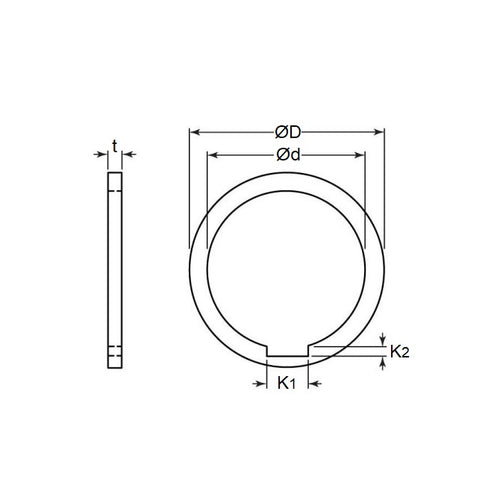

- ID (d)
:
38.100
mm
+ 0.279 / - 0.000
(Equiv. 1.5 in.) - OD (D)
53.975
mm
+/- 0.0508
(Equiv. 2.125 in.) - Thickness / Length (T)
0.508
mm
+ /- 0.025
(Equiv. 0.02 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 3088A781
- PB24453
- PB-24453
