PCS-BU-503RS - Datasheet
MBA
Category Information

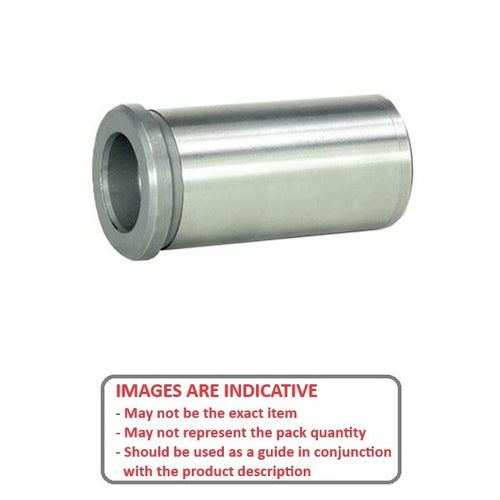

Bushings - ShoulderShoulder Bushings. Shoulder Bushings reduce friction on leader pins and are press-fit into place.
- An expanded range may be available on special order. Please enquire.
- Shoulder Bushings are hardened and precision ground.
Product Data

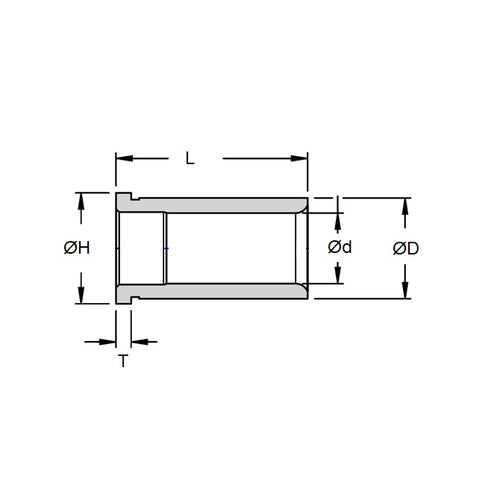

- Inside Diameter (ID)
:
38.100
mm
+ 0.0125 / - 0.0000
(Equiv. 1.5 in.) - Outside Diameter (OD)
50.800
mm
+ 0.0125 / - 0.0000
(Equiv. 2 in.) - Length (L)
60.325
mm
(Equiv. 2.375 in.) - Shoulder Diameter (H) 53.975 mm
- Shoulder Thickness (T) 4.763 mm
- Material Hardened Steel
