Miniature Bearings Australia
CP-381-381-67-098-R1-SC - Datasheet
MBA
Category Information

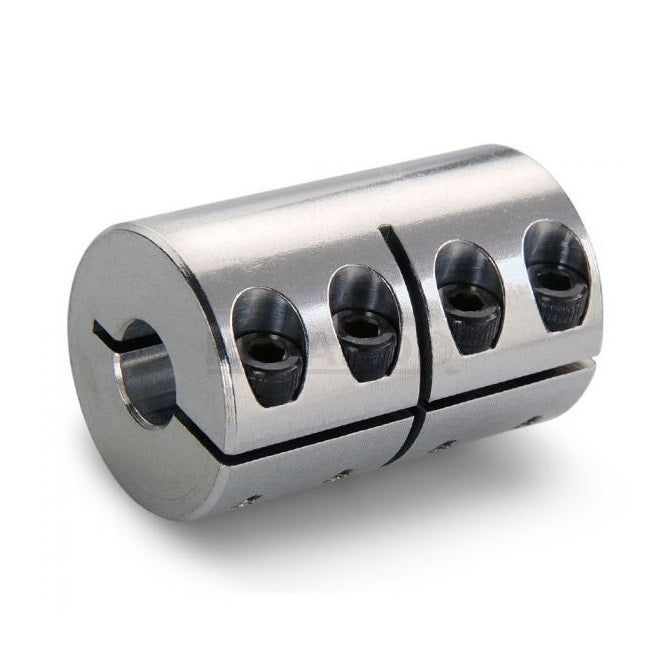

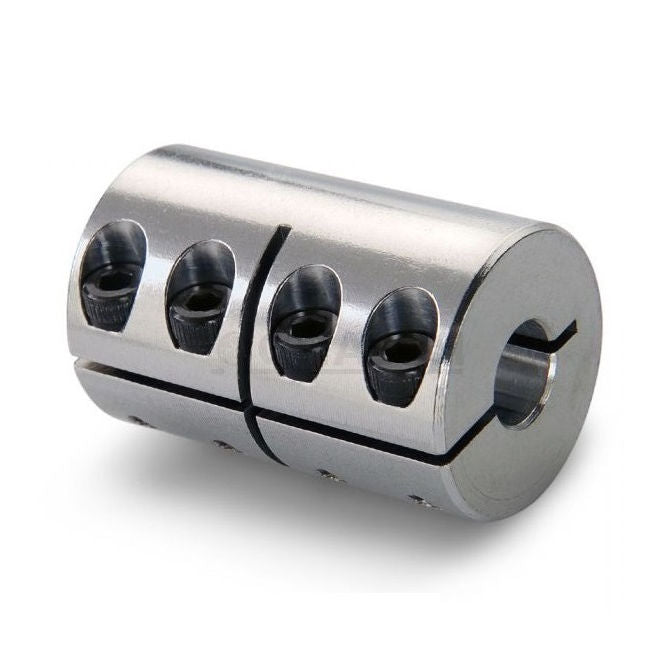

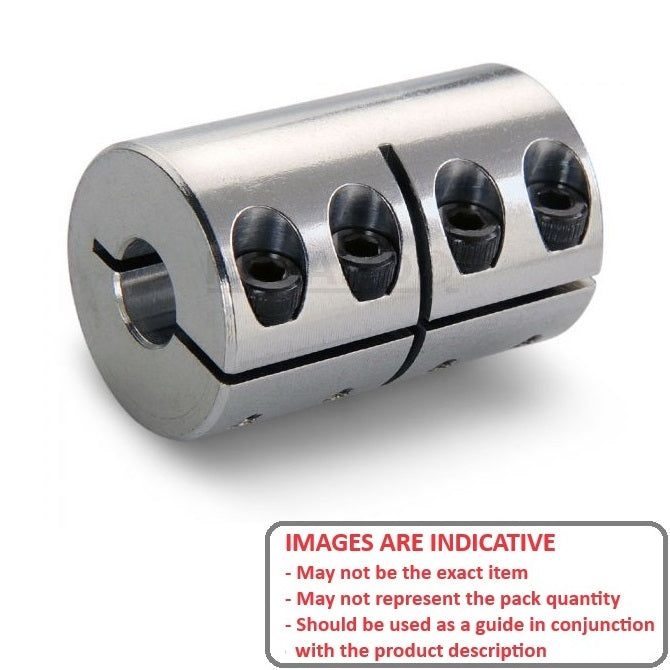

Couplings - Rigid - Clamp - 1 Piece - SteelSteel 1 Piece Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.
Product Data

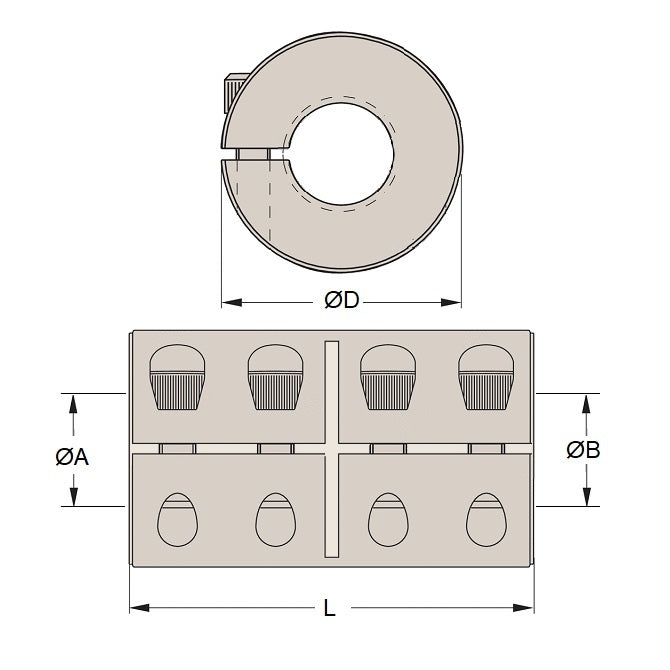

- Bore (b1)
:
38.100
mm
(Equiv. 1.5 in.) - Bore (b2)
38.100
mm
(Equiv. 1.5 in.) - OD (D)
66.675
mm
(Equiv. 2.625 in.) - Length (L) 98.425 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 91005K588
- CC-323
- CC323
