ECL-0335-0381-CZ-KR - Datasheet

MBA

Category Information

Retaining Rings - E-Clips - Klipring

Klipring E-Clips Retaining Rings. Also known as Poodle Rings - Imperial - N1504 / NKP

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Minimum Rec. Shaft Dia (S) : 38.10 mm
    (Equiv. 1.5 in.)
  • Groove Dia. (Dg) 33.45 mm +/- 0.252
    (Equiv. 1.317 in.)
  • Clip Thickness (T) 3.18 mm +/ - 0.076
    (Equiv. 0.125 in.)
  • Clip OD Loose (D1) 58.42 mm
  • Groove Width (W) 3.53 mm
  • Material Zinc Plated Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Waldes 5304-150-ZD
  • NoCor PO-150-ZD
  • Rotor Clip PO-150-ZD
  • PO150ZD
  • 5304150ZD
View full details

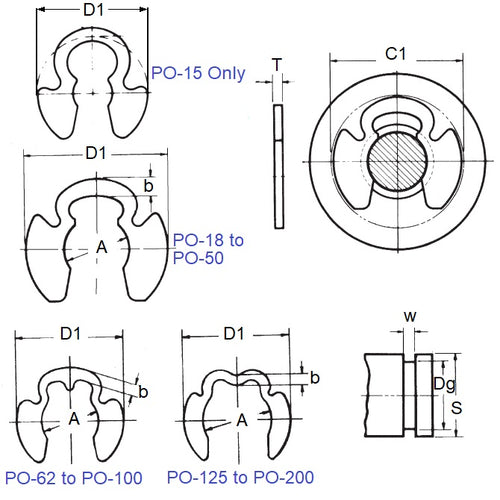

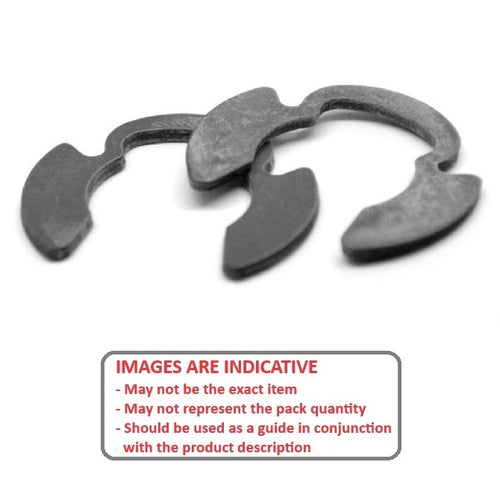

ECL-0335-0381-CZ-KRDiagramECL-0335-0381-CZ-KRImage
