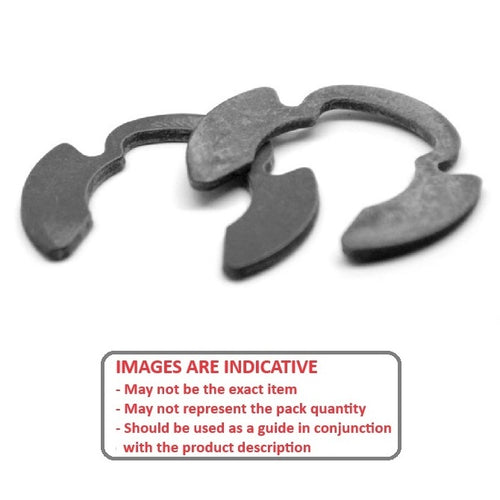

ECL-0335-0381-C-KR - Datasheet

MBA

Product Data

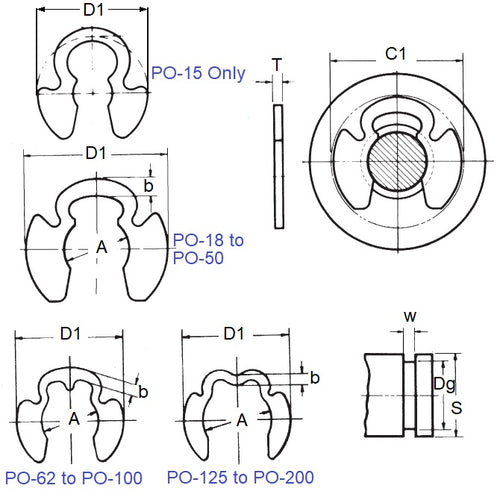

• Minimum Rec. Shaft Dia (S) : 38.10 mm
• Groove Dia. (Dg) 33.45 mm _{+/- 0.252}
  (Equiv. 1.317 in.)
• Clip Thickness (T) 2.77 mm _{+/- 0.076}
  (Equiv. 0.109 in.)
• Clip OD Loose (D1) 52.07 mm
• Groove Width (W) 3.05 mm
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Waldes® 5304-150
• 98420A167
• Huyett® PO-150
• NoCor® PO-150
• Rotor Clip® PO-150
• PO150
• 5304150
