Miniature Bearings Australia
RR-190RS - Datasheet
MBA
Category Information

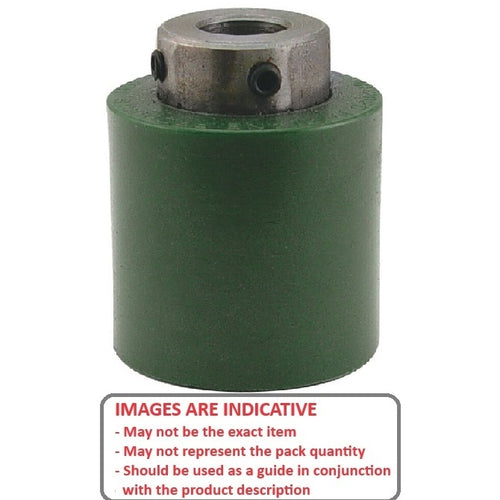

Rollers - Solid Shaft Mount - Coloured UrethaneColoured Urethane Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Blue colour may turn a shade of green when exposed to UV lighting
Product Data

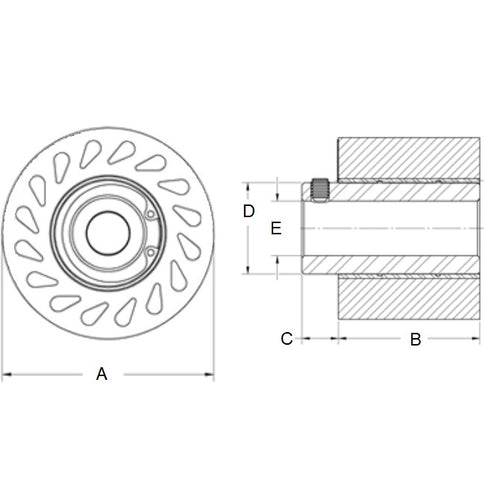

- Diameter (A)
:
38.10
mm
(Equiv. 1.5 in.) - Length (B)
31.75
mm
(Equiv. 1.25 in.) - Bore (E)
12.73 - 12.83
mm
(Equiv. 0.501 in.) - Hub Projection (C) 9.525
- Durometer 60
- Colour Blue
- Material Urethane
