Miniature Bearings Australia
RR-187RS - Datasheet
MBA
Category Information

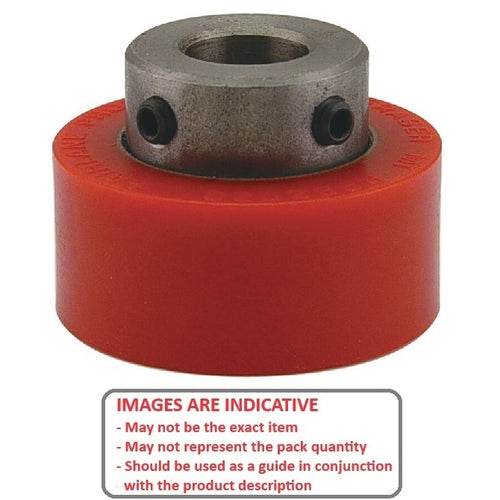

Rollers - Solid Shaft Mount - Coloured UrethaneColoured Urethane Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Blue colour may turn a shade of green when exposed to UV lighting
Product Data
- Diameter (A)
:
38.10
mm
(Equiv. 1.5 in.) - Length (B)
31.75
mm
(Equiv. 1.25 in.) - Bore (E)
9.55 - 9.65
mm
(Equiv. 0.376 in.) - Hub Projection (C) 9.525
- Durometer 80
- Colour Red
- Material Urethane
Product Compliance and Data
Additional Resources
Cross References
- KaVo RR-187
- RR187
