Miniature Bearings Australia
RR-157RS - Datasheet
MBA
Category Information

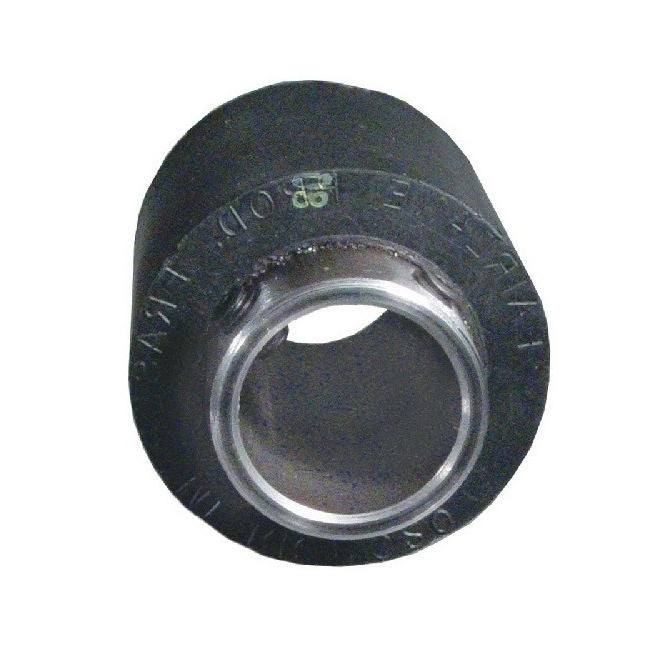

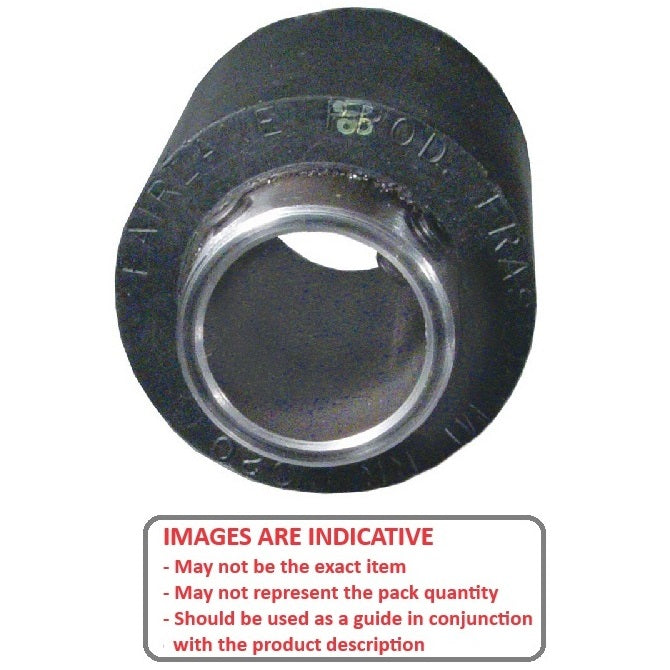

Rollers - Solid Shaft Mount - Black NeopreneBlack Neoprene Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
Product Data
- Diameter (A)
:
38.10
mm
(Equiv. 1.5 in.) - Length (B)
31.75
mm
(Equiv. 1.25 in.) - Bore (E)
12.73 - 12.83
mm
(Equiv. 0.501 in.) - Hub Projection (C) 9.525
- Durometer 80
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- KaVo RR-157
- RR157
