RR-28RS - Datasheet
MBA
Category Information

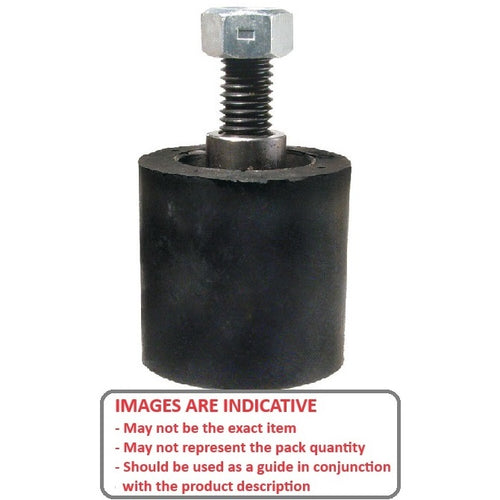

Rollers - Solid Stud Mount - Black NeopreneBlack Neoprene Solid Stud Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Complete with washer and locknut
- Free idling with ball bearings

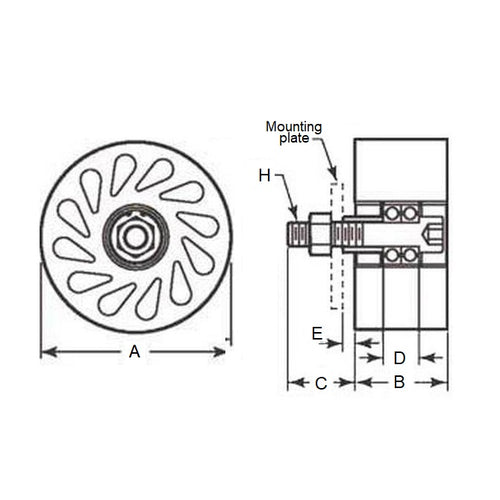

Product Data
- Diameter (A)
:
38.10
mm
(Equiv. 1.5 in.) - Roller Width (B)
31.75
mm
(Equiv. 1.25 in.) - Thread
5/16-18 UNC (7.94mm)
(Equiv. 0.197 in.) - Thread Length (C) 15.875 mm
- Bearing Overall Width (D) 12.700 mm
- E 3.175
- Shore A Durometer 60
- Number of Bearings 2
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- 22875T4-60A
- 22875T460A
