AU-823RS - Datasheet
MBA
Category Information

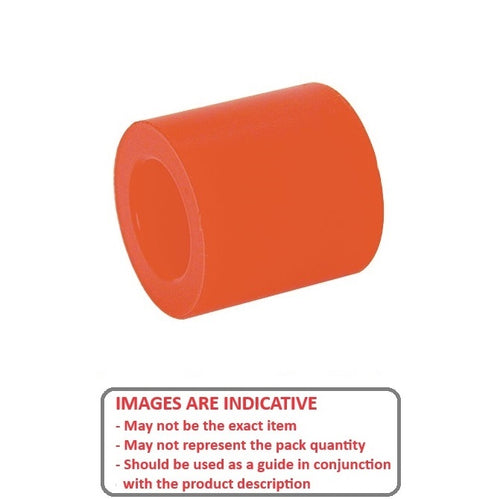

Bumpers - Cylindrical CounterboredCylindrical Counterbored Bumpers. With steel core and washer moulded inside. Counterbored hole to accept a socket head cap screw.
- Rubber bumper designed with a large, shallow hole on one side, allowing a fastener's head to be sunk below the surface for a flush or protected fit.
- Commonly used for impact protection on machinery, loading docks, and equipment, as well as for vibration dampening and to prevent sliding on surfaces.
- Also see Mounts - Buffers.
Product Data

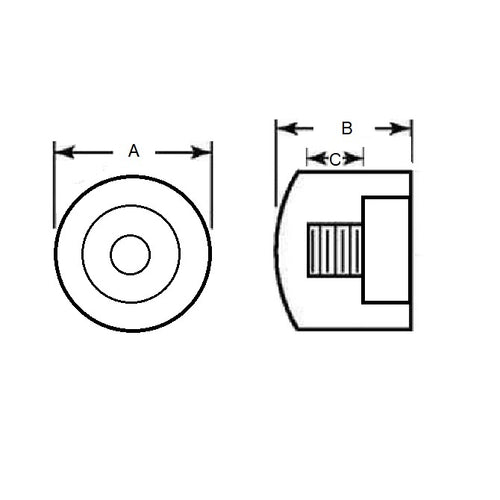

- Diameter (A) : 38.100 mm
- Height (B) 31.750 mm
- Hole Diameter 9.53 mm
- End Flat
- Durometer 80A
- Colour Orange
- Material Polyurethane 80A
