W0381-CSW-C - Datasheet
MBA
Category Information

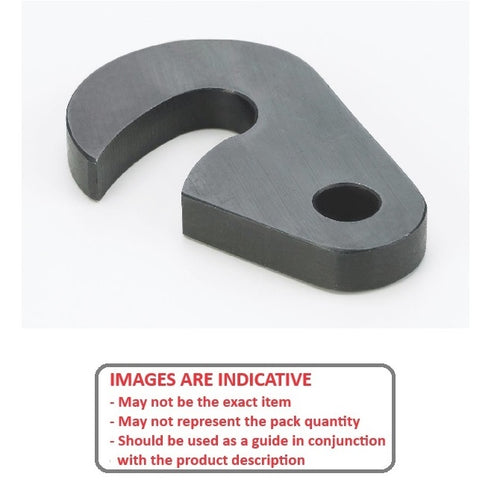

Washers - C - SwingSwing C Washers. Cold finished steel, hardened and ground with a black oxide finish.
- C washers gives the possiblity to adjust, remove or modfiy spacing without removal of the fastener.
- Specialized washers used in jigs, fixtures, and machinery for clamping. Design that allows it to swing out of the way after the clamping screw is loosened, facilitating easy workpiece insertion and removal.
Product Data

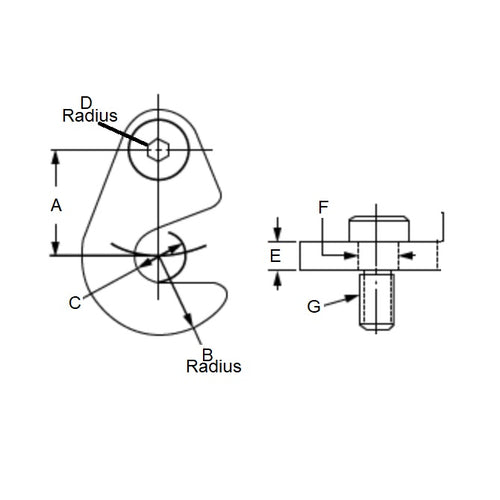

- Centre Hole to Centre Groove (
:
38.10
mm
(Equiv. 1.5 in.) - Groove Radius (B)
28.58
mm
(Equiv. 1.125 in.) - Groove Diameter (C)
16.66
mm
(Equiv. 0.656 in.) - Hole Radius (D) 14.275 mm
- Thickness (E) 9.525 mm
- Bolt Hole (F) 12.700 mm
- Screw Size 3/8-16
- Material Carbon Spring Steel Self Finish
