WRE-0381-RD - Datasheet
MBA
Category Information

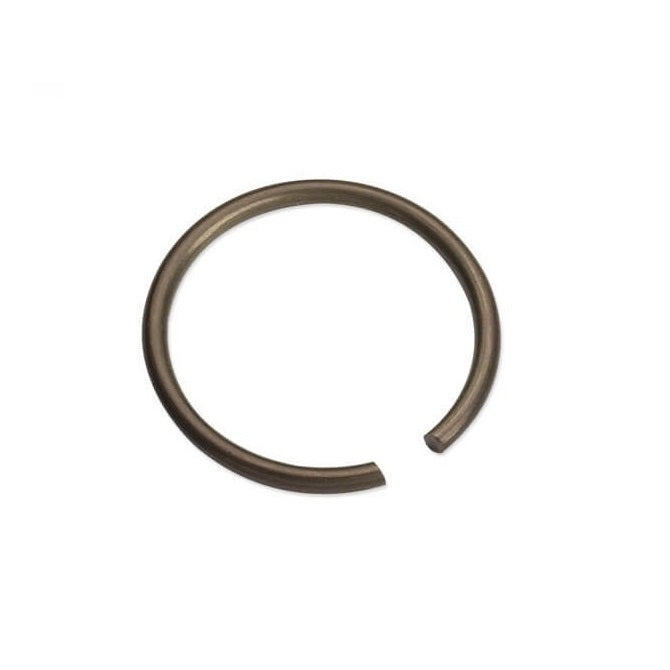

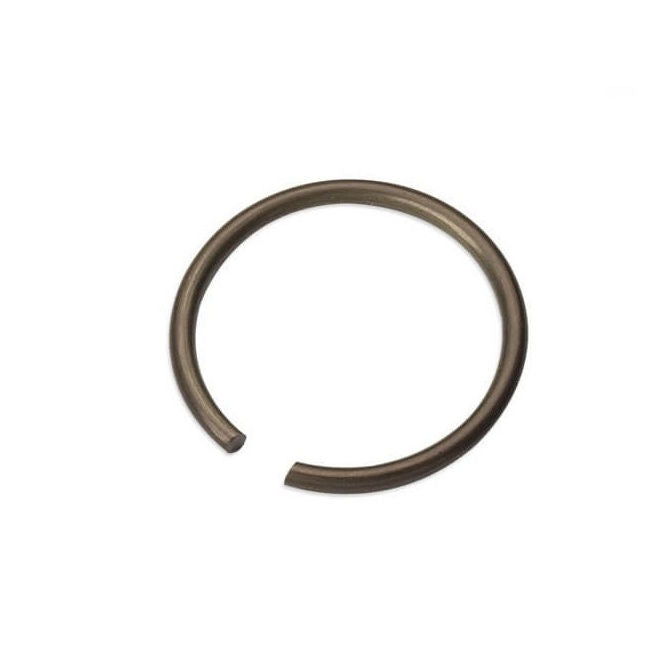

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data
- Shaft Diameter (Ds) : 38.10 mm
- Clip Thickness (T) 2.03 mm
- Groove Dia. (Dg) 36.07 mm
- Approx. Loose Circlip ID (A) 35.05 mm
- Radial Wall (S) Approx. 36.07 mm + 0.13 / - 0.00
- Groove Width (W) 2.11 mm + 0.13 / - 0.00
- Free Outside Dia (Dr) 39.11
- Section Profile Round Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® A10-150
- NoCor® A10-150
- A10150
- A1000150
- A1000-150
