CSU-0381-038 - Datasheet
MBA
Category Information

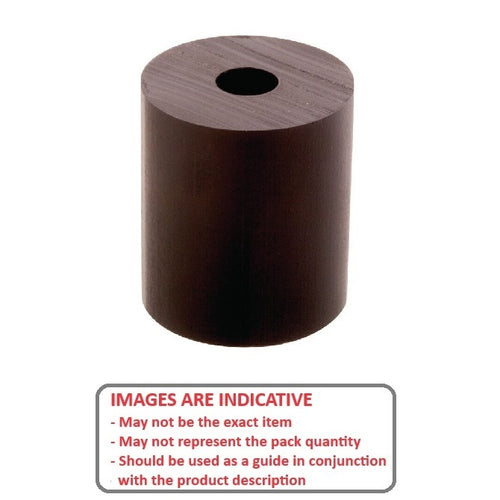

Mounts - Bumpers - Urethane SpringsUrethane Springs Bumpers Mounts. Urethane springs are designed for use in applications where corrosion, vibration or magnetism prevent the use of conventional steel springs.
- An expanded range may be available on special order. Please enquire.
- They replace steel coil springs in medium pressure applications involving space limitations, high blank holding pressure and adequate stripping.
- Durometer 95 shore A. Colour black. Tensile strength 5000 psi.
- Temperature range minus 40 to 80 oC
Product Data
- Outside Diameter
:
38.10
mm
(Equiv. 1.5 in.) - Inside Diameter
19.1
mm
(Equiv. 0.752 in.) - Free Length
38.1
mm
(Equiv. 1.5 in.) - Load at 3.2mm Deflection 328 Kg +/- 20 Perc
- Tensile Strength 34470 kPa
- Material Polyurethane
Product Compliance and Data
Additional Resources
Cross References
- US105
- US-105
