ES-3810-1143-31-M - Datasheet
MBA
Category Information

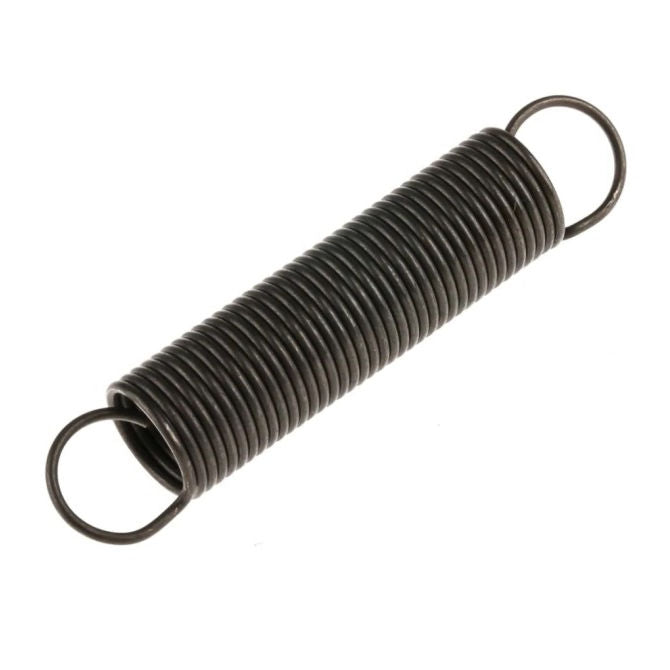

Springs - Extension - Music WireMusic Wire Extension Springs. Carbon spring steel, zinc plated selection.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).
Product Data
- OD (D0)
:
38.10
mm
(Equiv. 1.5 in.) - Overall Length (L0)
114.3
mm
(Equiv. 4.5 in.) - Wire Diameter (d)
3.15
mm
(Equiv. 0.124 in.) - Max. Extension (L1) 218.190 mm
- Spring Rate 1.821 N/mm
- Initial Tension (IT) 18.7 N
- Load at L1 207.470 N
- End Type Closed - Full Loop
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- ASI E1500-124-4500
- E15001244500
