AU-812RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Female Thread

Cylindrical Female Thread Bumpers. With steel core.

    Product Data

    • Diameter (A) : 38.100 mm
      (Equiv. 1.5 in.)
    • Height (B) 31.750 mm
      (Equiv. 1.25 in.)
    • Thread 3/8-16 UNC (9.53mm)
    • End Flat
    • Durometer 80A
    • Colour Orange
    • Material Polyurethane
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details

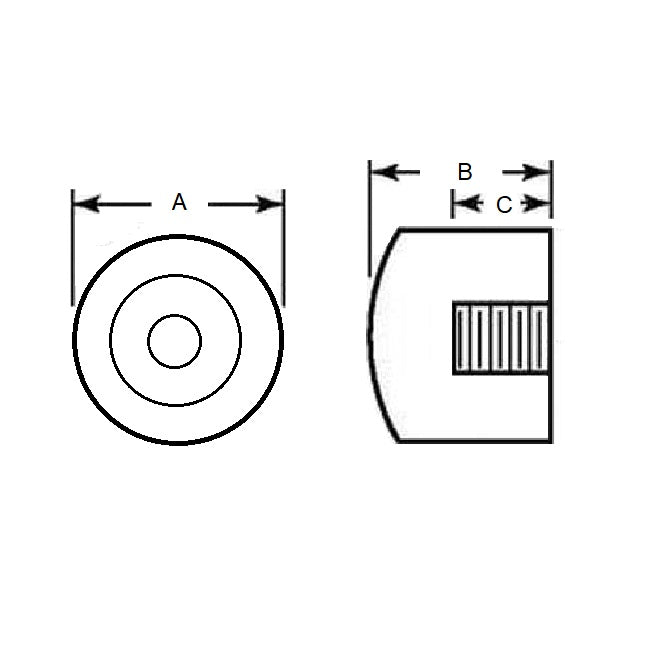

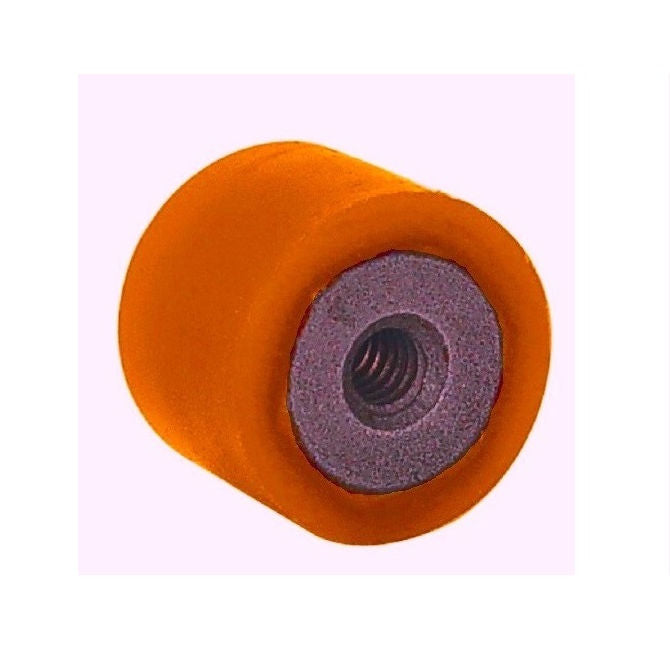

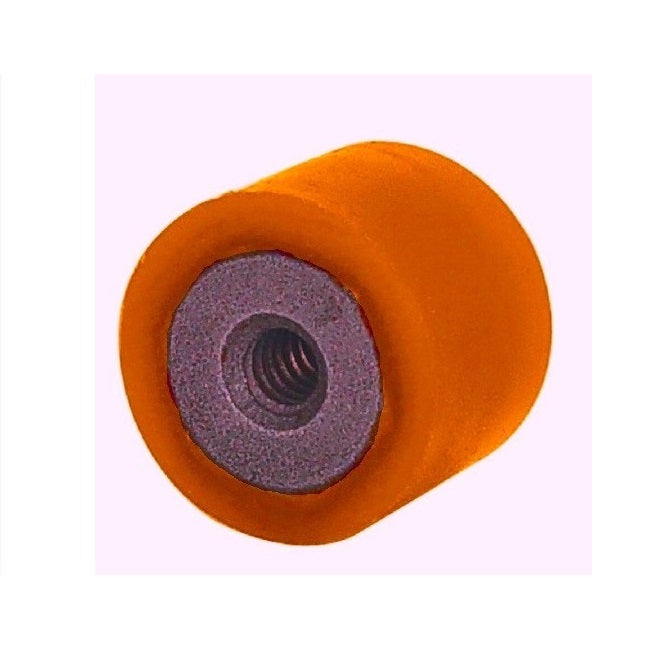

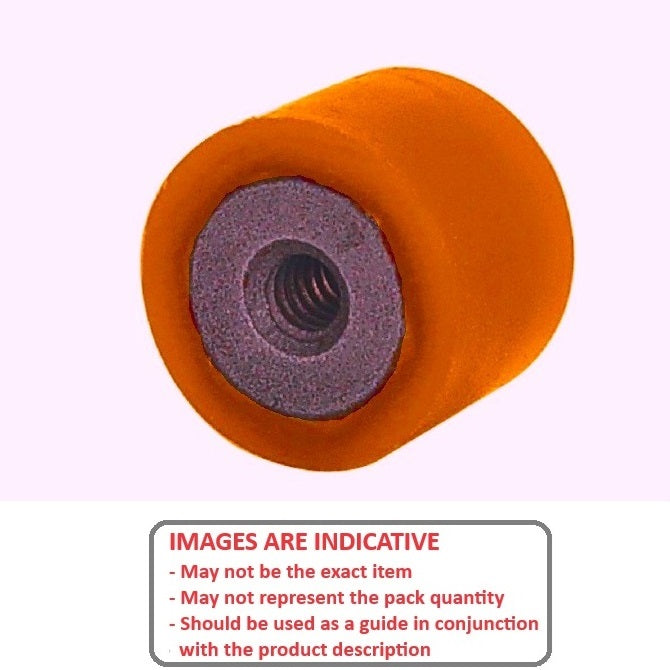

      AU-812RSDiagramAU-812RSImage
