Miniature Bearings Australia
LCSQCL-0381-Q - Datasheet
MBA
Category Information
Linear - Housing Clamps SquareHousing Clamps Square Linear. Square Housing Clamps for Square Linear Shafting.

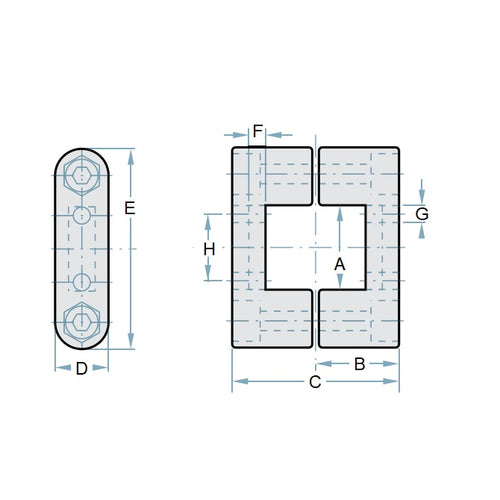

Product Data
- Suitable Shaft Diameter : 38.10 mm
- Type Square Clamp
- B 33.99 mm
- C 68.00 mm
- D 19.99 mm
- E 75.01 mm
- F 7.01 mm
- G 6.50 mm
- H 75.00 mm
Product Compliance and Data
Additional Resources
Cross References
- 60255K35
- Reid Tool® PBC-495
- PBC495
