LCHP-0381-083-CC - Datasheet
MBA
Category Information

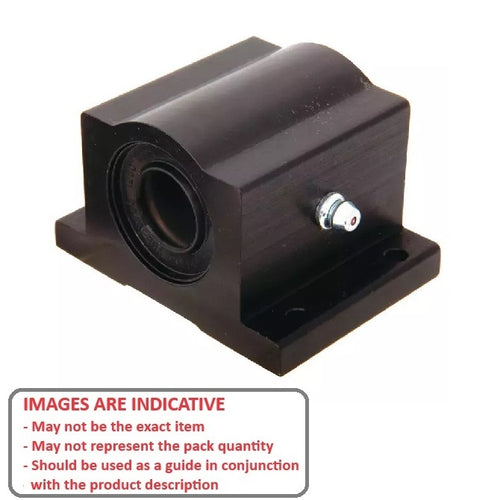

Linear - Housings Pillow Block Closed Ceramic CoatedHousings Pillow Block Closed Ceramic Coated Linear. Approved for direct food contact in applications where animal fat or food approved lubricants are present.
- Able to withstand rapid oscillation, contamination, shock/vibration, wash downs, submersion and shaft brinelling.
- DO NOT USE WD-40 or Silcone based spray lubricants.

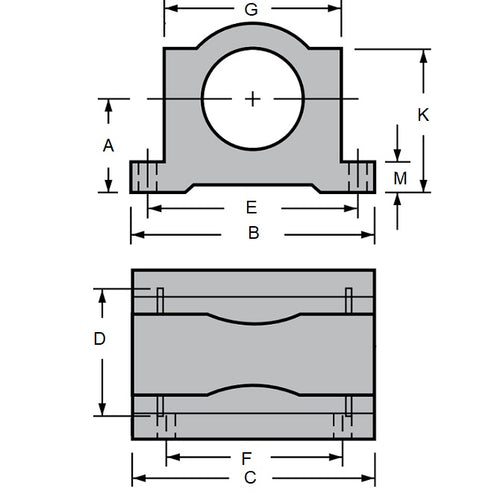

Product Data
- Nominal Diameter
:
38.10
mm
(Equiv. 1.5 in.) - Widths (B x C)
120.65 x 101.60
mm
(Equiv. 4.75 in.) - Length (D)
82.55
mm
(Equiv. 3.25 in.) - Bolt Distances (E x F) 104.78 x 63.50 mm
- Bolt Hole Size 7.14 mm
- Height (K) 73.03 mm
- Centre Height (A) 44.45 mm
- G 88.90 mm
- M 12.70 mm
- Max Static Load Capacity 10211.27 kg
Product Compliance and Data
Additional Resources
Cross References
- 6674K18
- LMB330
- LMB-330
