Miniature Bearings Australia
LCSQ-0381-102-4 - Datasheet
MBA
Category Information

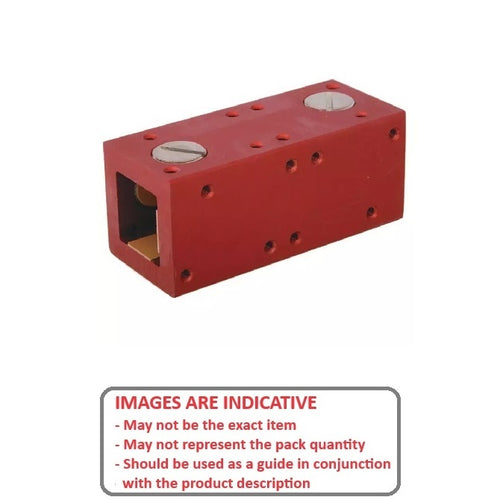

Linear - Square HousingsSquare Housings Linear. Used to maintain radial integrity and eliminate the need for parallel shafting.
- Bearings are made from 6061-T6 Aluminum with Anodized finished.
- Equipped with bearing plugs that run on a single shaft.
- Threaded adjustable plugs are made from 316 Stainless with self-lubricating FrelonJ wear pads.
Product Data

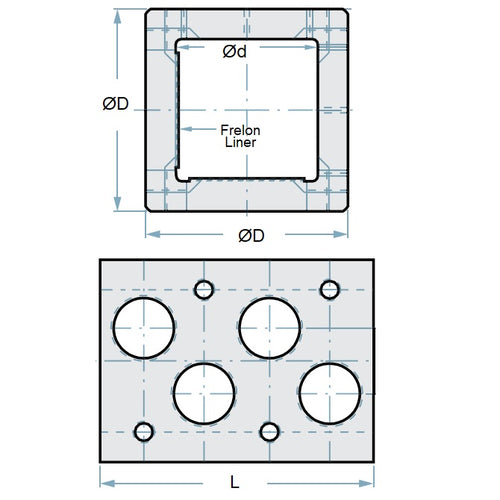

- Suitable Shaft Diameter : 38.10 mm
- Outside Diameter 44.45 mm
- No. Of Adjustable Sides. Four Sided
- Length 101.60 mm
- Load Capacity 417.30 kg
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® PBC-420
- PBC420
