Miniature Bearings Australia
RR-1172RS - Datasheet
MBA
Category Information
Rollers - Solid Shaft Mount - Bonded Insert - Coloured UrethaneColoured Urethane Bonded Insert Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Blue colour may turn a shade of green when exposed to UV lighting
Product Data

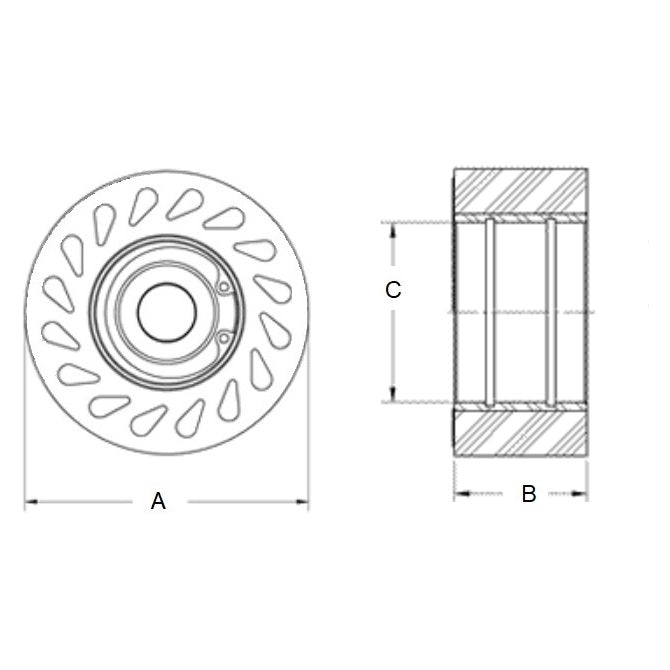

- Diameter (A)
:
38.10
mm
(Equiv. 1.5 in.) - Length (B)
31.75
mm
(Equiv. 1.25 in.) - Bore (C)
22.28 - 22.35
mm
(Equiv. 0.877 in.) - Durometer 80
- Colour Red
- Material Urethane
Product Compliance and Data
Additional Resources
Cross References
- 2477K31-80A
- 2477K3180A
