CCF-1225RS - Datasheet

MBA

Category Information

Roller Followers - Urethane Coated

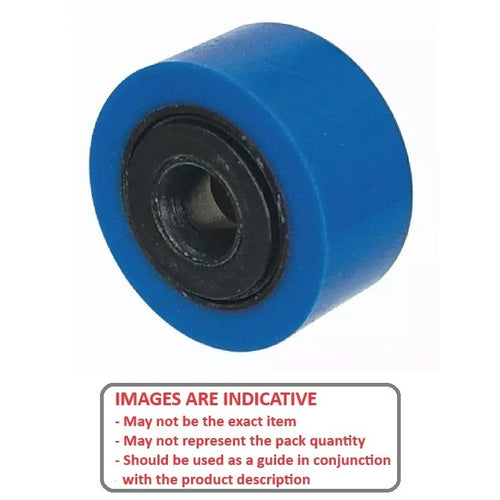

Urethane Coated Roller Followers. Urethane tyred cam yoke rollers for noise reduction, reduced wear and non marking. 80 Shore A hardness.

  • Polycoated shore 80A cast urethane cover

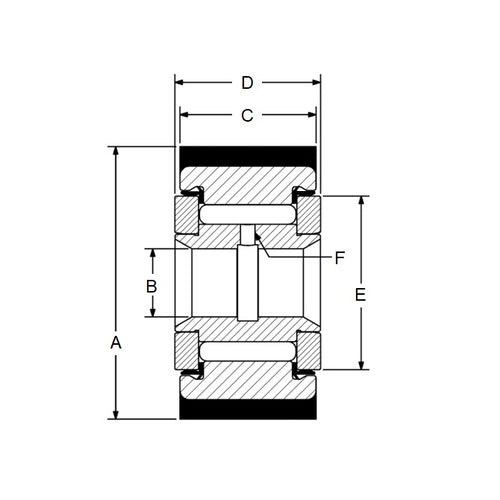

Product Data

  • Outside Diameter (A) : 38.100 mm +/- 0.13
    (Equiv. 1.5 in.)
  • Bore (B) 9.525 mm + 0.005 / - 0.010
    (Equiv. 0.375 in.)
  • Roller Width (C) 19.050 mm +/- 0.13
    (Equiv. 0.75 in.)
  • Overall Width (D) +0.13/-0.26 20.638 mm
  • Approx Washer OD (E) Ref. 25.4 mm
  • Oil Hole Diameter (F) 2.38 mm
  • Material Polyurethane Coated
Country of Origin: US
