TLM-1906RS - Datasheet

MBA

Category Information

Linear - Rail Supports - Without Shaft

Without Shaft Rail Supports Linear. For mounting of linear shafting.

  • Shafting sold separately.
  • Support is made from aluminium

Product Data

  • Suitable Nom. Shaft Size (d) : 38.1 mm
    (Equiv. 1.5 in.)
  • Height to Shaft Centre (H) 63.5 mm
    (Equiv. 2.5 in.)
  • Length (+0/-1.59mm) 609.6 mm
    (Equiv. 24 in.)
  • Foot Height (V) 9.652 mm
  • Base Width (A) 76.2 mm
  • Support Angle (a) 20 °
  • Hole Spacing (T) 203.2 mm
  • Base Mtg. Hole (U) 8.636 mm
  • Shaft Mtg. Hole (O) 8.636 mm
  • Bolt Hole Centres (E) 57.15 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 6039K17
    View full details

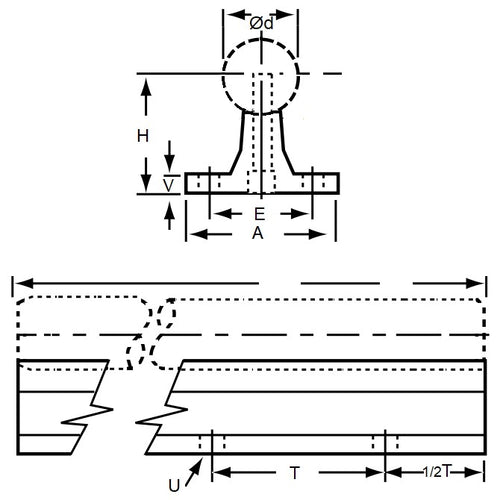

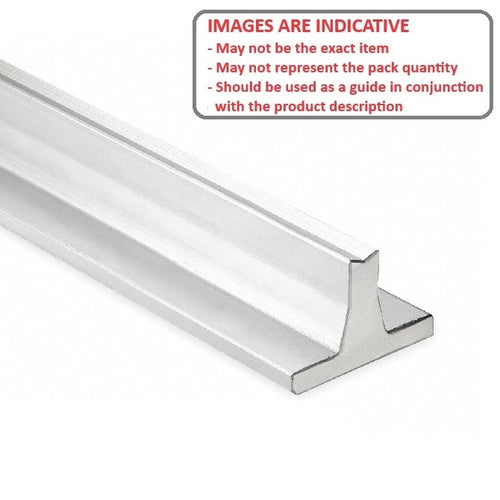

    TLM-1906RSDiagramTLM-1906RSImage
