IP-225RS - Datasheet
MBA
Category Information

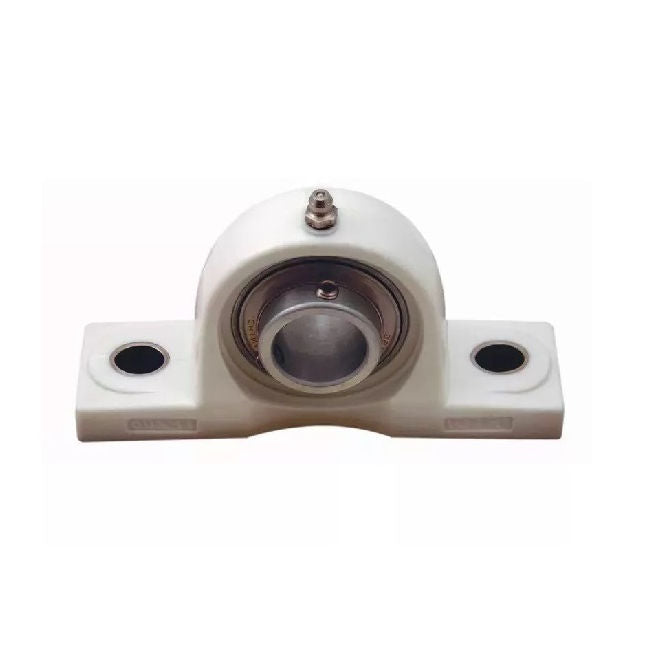

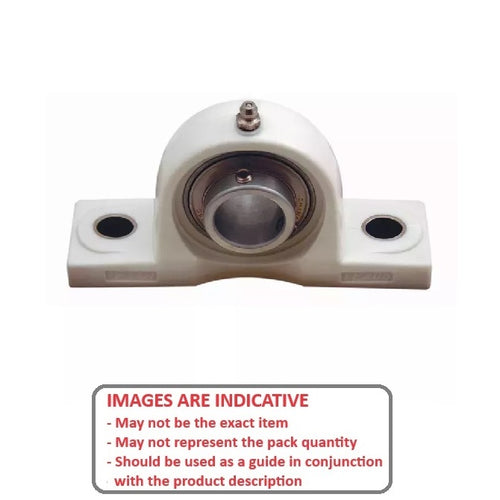

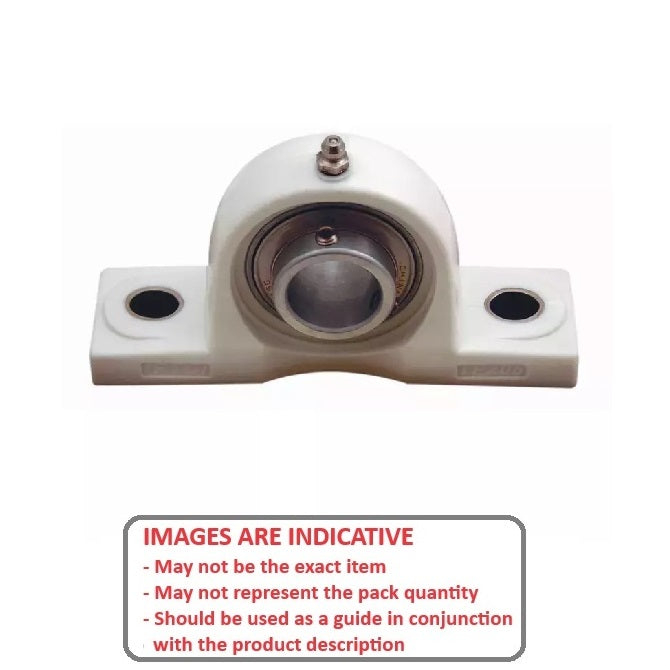

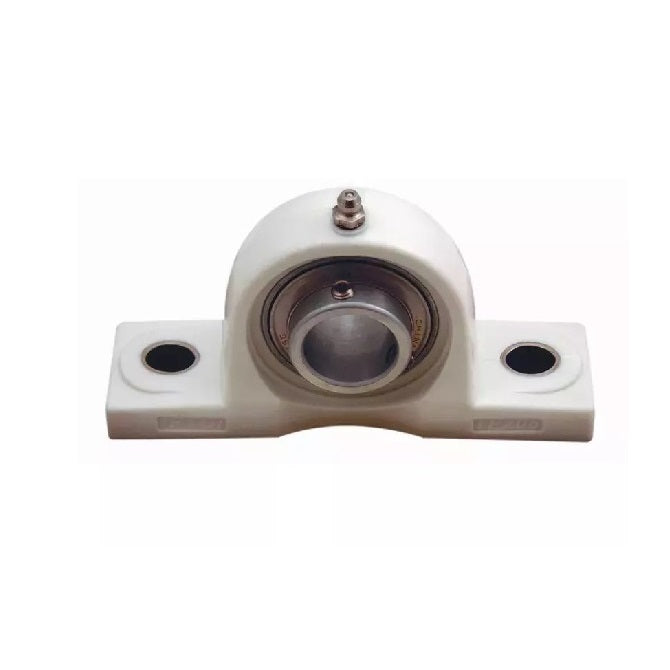

Housing and Bearing Assembly - Pillow Block - Thermoplastic and SteelThermoplastic and Chrome Steel Pillow Block Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC
Product Data
- Inside Diameter
:
38.100
mm

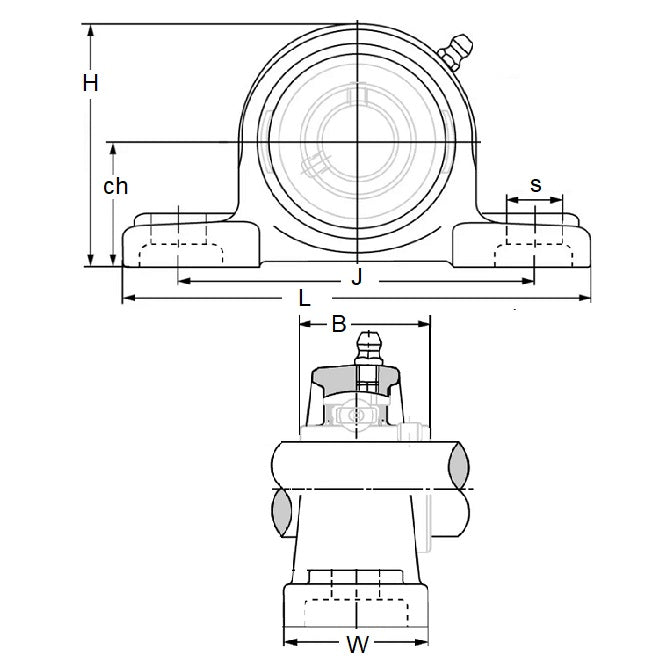

(Equiv. 1.5 in.) - Centre Height (A)
49.213
mm
(Equiv. 1.938 in.) - Length (B)
184.150
mm
(Equiv. 7.25 in.) - Width (C) 53.980 mm
- Foot Height (D) 19.840 mm
- Bolt Centres (E) 138.100 mm
- Bolt Hole Size (G) 18.256 mm
- Height (H) 99.219 mm
- K 18.999 mm
- L 30.201 mm
