IDC-162RS - Datasheet
MBA
Category Information

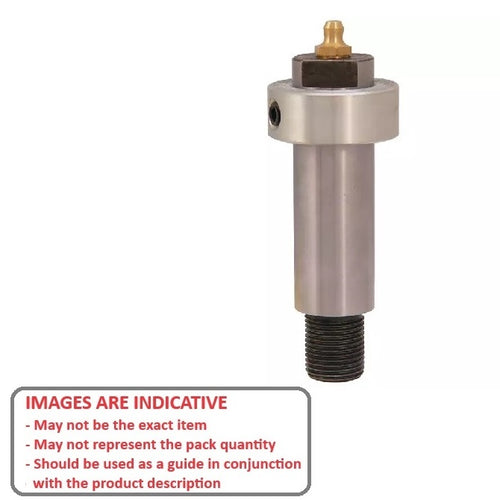

Idler ShaftsIdler Shafts. Ready made precision ground idler shafts.
- An expanded range may be available on special order. Please enquire.
- Internal grease hole can be accessed by drilling if required
- Use with your idler pulleys.
- Can be used with the idler tensioners listed on this site or use in your own design.
Product Data

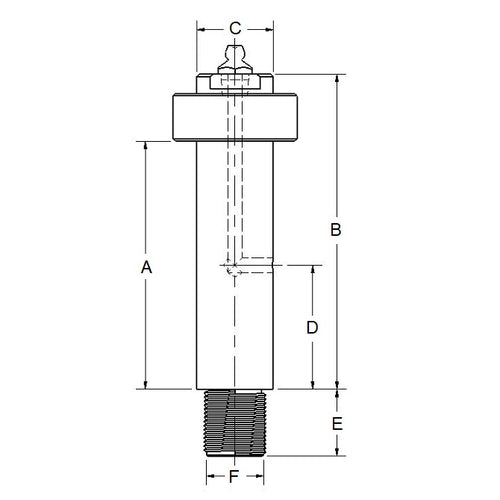

- Shaft Length (A)
:
38.100
mm
(Equiv. 1.5 in.) - Diameter (C)
25.400
mm
(Equiv. 1 in.) - Thread Size 3/4-10
- Overall Length (B) 53.975 mm
- Base to grease hole depth (D) 15.875 mm
- Thread Length (E) 22.225 mm
- Approx Weight 0.33 Kg
- Material Carbon Steel
