CCF460RS - Datasheet

MBA

Category Information

Roller Followers - Standard

Standard Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 38.100 mm
      (Equiv. 1.5 in.)
    • Overall Width (D) 23.813 mm
      (Equiv. 0.938 in.)
    • Bore (B) 11.113 mm
      (Equiv. 0.438 in.)
    • Width (C) 22.225 mm
    • E 28.575 mm
    • Dynamic Load Rating 1973.127 kg
    • Static Load Rating 5080.235 kg
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 7796K84
      • CCF460
      • CCF-460
      View full details

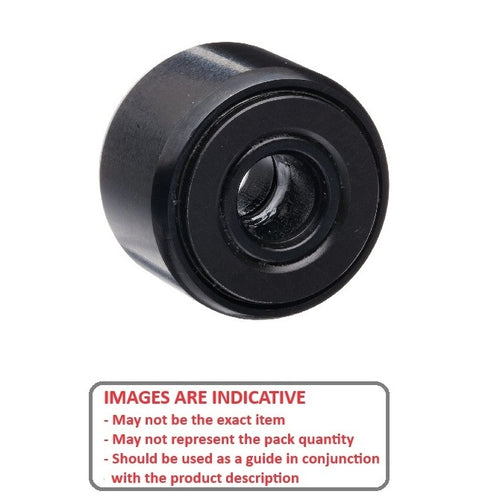

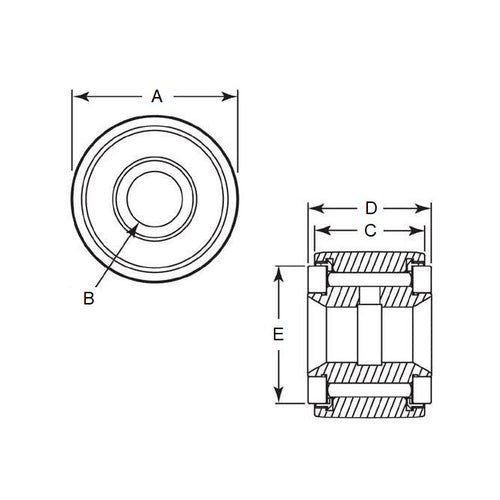

      CCF460RSDiagramCCF460RSImage
