CCF135RS - Datasheet

MBA

Category Information

Roller Followers - Standard

Standard Roller Followers. This is the main category in this series

    Product Data

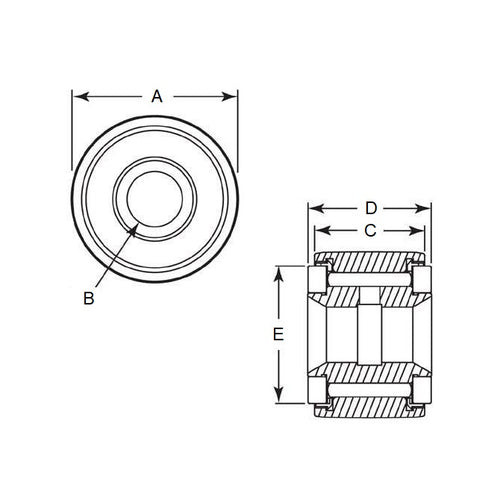

    • Diameter (A) : 38.100 mm
      (Equiv. 1.5 in.)
    • Overall Width (D) 23.813 mm
      (Equiv. 0.938 in.)
    • Bore (B) 11.113 mm
      (Equiv. 0.438 in.)
    • Width (C) 22.225 mm
    • E 28.575 mm
    • Dynamic Load Rating 2195.387 kg
    • Static Load Rating 5116.522 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 6831K46
      • CCF135
      • CCF-135
      View full details

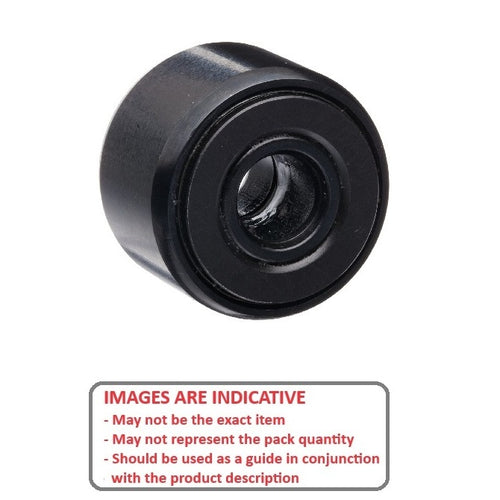

      CCF135RSDiagramCCF135RSImage
