LOHP-0381-229-TSS - Datasheet
MBA
Category Information

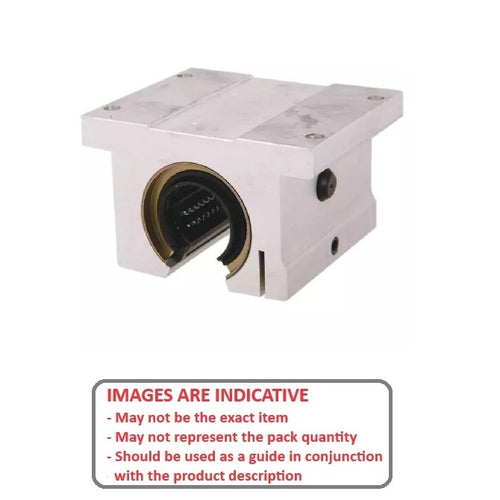

Linear - Thomson Super Smart Housings - Twin Pillow Block - OpenOpen Twin Pillow Block Thomson Super Smart Housings Linear. Includes Bearings.
- Universally self-aligning bearing offers twice the load capacity or 8 times the travel life of our industry standard Super Ball Bushing® bearing. Standard single or twin pillow block.
Product Data

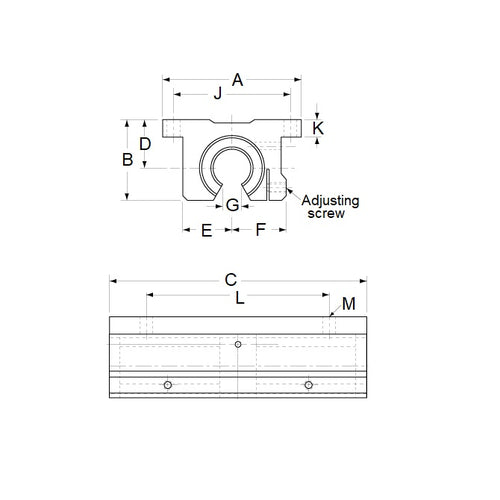

- Nominal Diameter
:
38.100
mm
(Equiv. 1.5 in.) - Overall Length (C)
228.600
mm
(Equiv. 9 in.) - Height (B)
74.676
mm
(Equiv. 2.94 in.) - Width (A) 120.650 mm
- Centre Height (D) 44.450 mm
- Centre Width (E) 44.450 mm
- Centre Width (F) 47.752 mm
- Opening Distance (G) 18.796 mm
- Bolt Centres (J x L) 104.775 x 63.500 mm
- Dynamic Load Capacity 1760 kgf
- Bolt Hole (M) 7.112 mm
- Flange Thickness (K) 12.700 mm
Product Compliance and Data
Additional Resources
Cross References
- Thompson SSUTWNO-24
- SSUTWNO24
- TLM-1165
- TLM1165
