RPI-381-382-C - Datasheet

MBA

Product Data

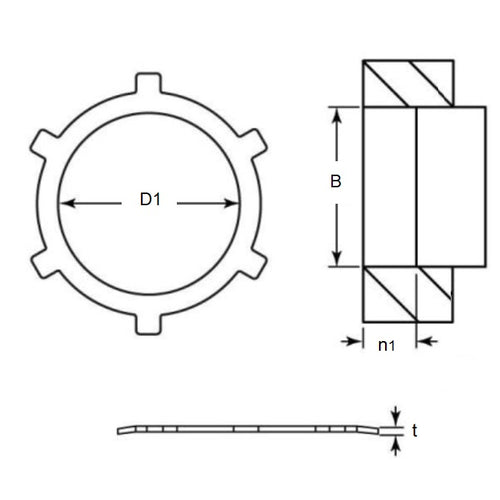

• Housing Bore (B) Min : 38.05 mm
  (Equiv. 1.498 in.)
• Housing Bore (B) Max 38.15 mm
  (Equiv. 1.502 in.)
• Inside Clearance (D1) 30.18 mm _{+ / - 0.50}
  (Equiv. 1.188 in.)
• Thickness (t) 0.38 mm +/- 0.06
• Recommended Depth (n1) 1.52 mm
• Thrust Load 829 kg.cm
• Material Carbon Spring Steel Self Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• 98435A150
• NoCor TI-150
• N1305-0150-APP
• N13050150APP
• TI150
