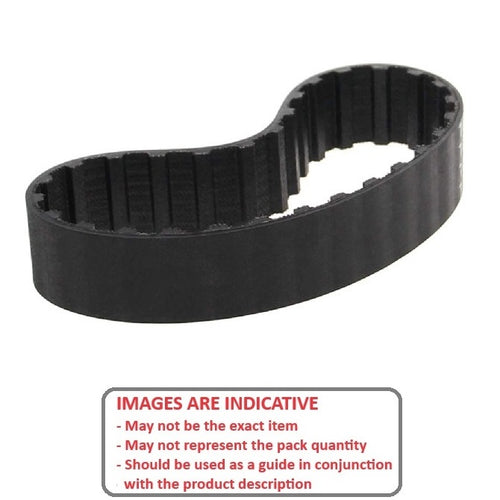

20mm Wide T5 Timing 5.000mm Pitch Belts. T Series Metric Timing Belts.

• Timing belts combined with timing pulleys, provide power transmission without slippage.
• Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
• Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
• Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
• Tooth Length (T) - 1.8mm
• Tooth Height (H) - 1.2mm
• Belt Height (W) - 2.2mm - Corner Radii ( r ) - 0.4mm
• Pitch (P) - 5mm
