Miniature Bearings Australia

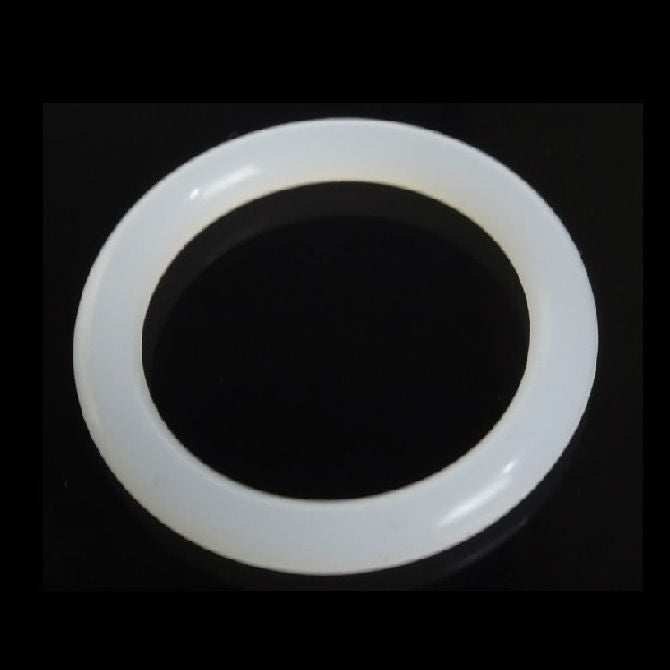

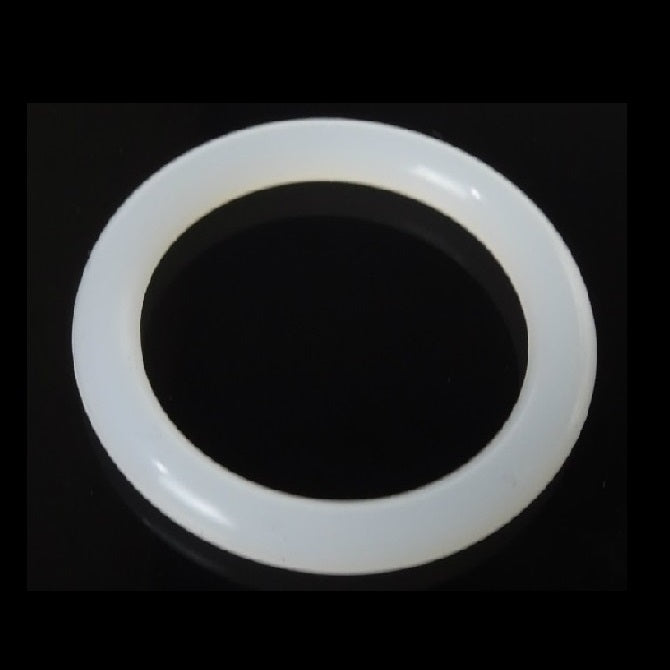

OR-03782-178-S70-029-C - Datasheet
MBA
Category Information
O-Rings - Silicone RubberSilicone Rubber O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food appliactions.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance.
- Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
Product Data
- Inside Diameter (ID)
:
37.82
mm
(Equiv. 1.489 in.) - Section (t)
1.78
mm
(Equiv. 0.07 in.) - Colour Clear
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- BS029-SIL70-CLEAR
- BS029SIL70CLEAR
