W0360-ALN-CA - Datasheet
MBA
Category Information

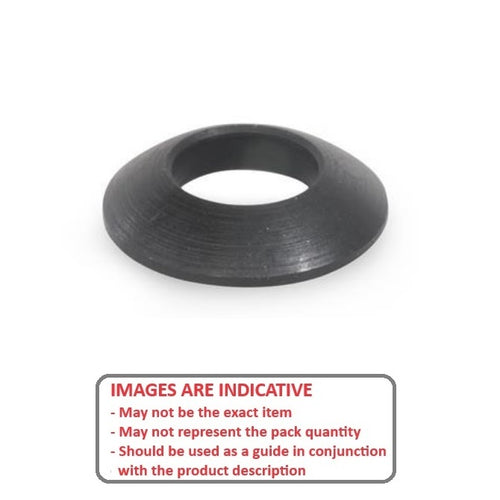

Washers - Self Aligning - Components - Hardened SteelHardened Steel Components Self Aligning Washers. Spherical Seat Washers. Washer A (aligning) and washer B (seat) sold separately.
- Self-aligning washers are designed to compensate for misalignment between connected parts. An expanded range may be available on special order. Please enquire.
- Consists of a convex and concave washer that swivel slightly when nested, allowing them to adapt to slight angles and uneven surfaces. This helps to distribute load evenly and reduce stress on the connection.
- Case Hardened steel 9 S Mn Pb 28 K DIN 6319.
- Order a base washer and an aligning washer to make a complete unit.
- Max Shaft Size Shown will allow 3 Deg of misalignment.
- DIN 6319-G washers are used for clamping mechanical parts with non-parallel surfaces.
- Designed for screw solidity in compliance with 8.8. Limited for use on flat closed ring areas - not for elongated holes.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Shaft or Bolt Size
:
36.00
mm
(Equiv. 1.417 in.) - Bore Size (d1 or d2)
37
mm
(Equiv. 1.457 in.) - OD (d3)
68.00
mm

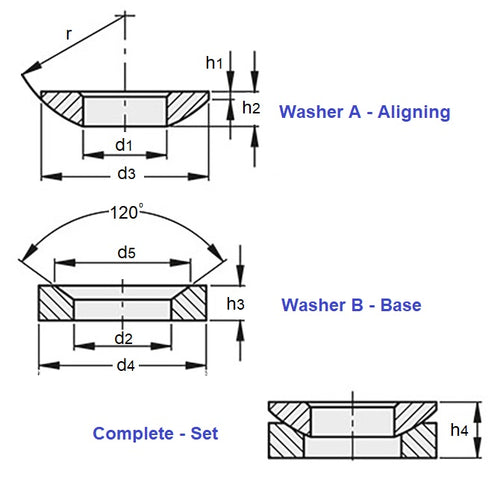

(Equiv. 2.677 in.) - Thickness (h2 or h3) 14.0 mm
- Overall Thickness (h4) 23.0 mm
- Radius (r) 50.0 mm
- Static Load Rating 394 Max. kN
- Type Washer A (Aligning)
- Actual ID (Ref) 36 mm
- Standard DIN 6319C
- Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- C37X68
