P-H-036-250C - Datasheet
MBA
Category Information

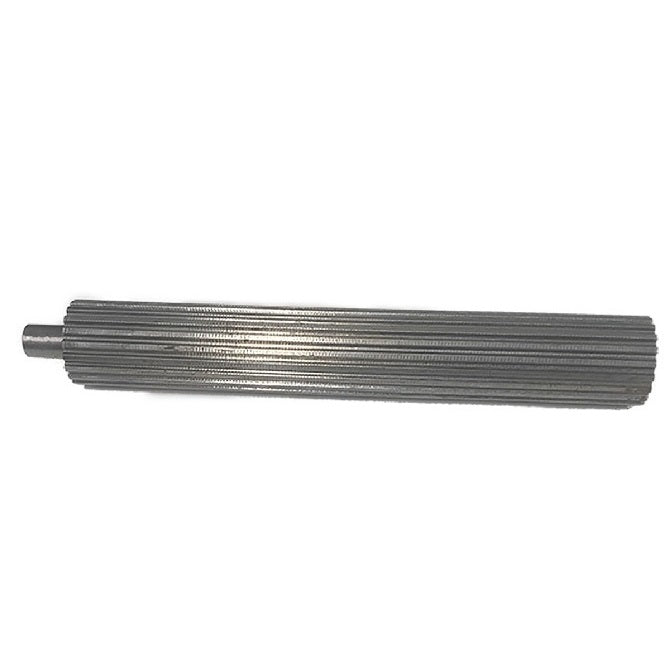

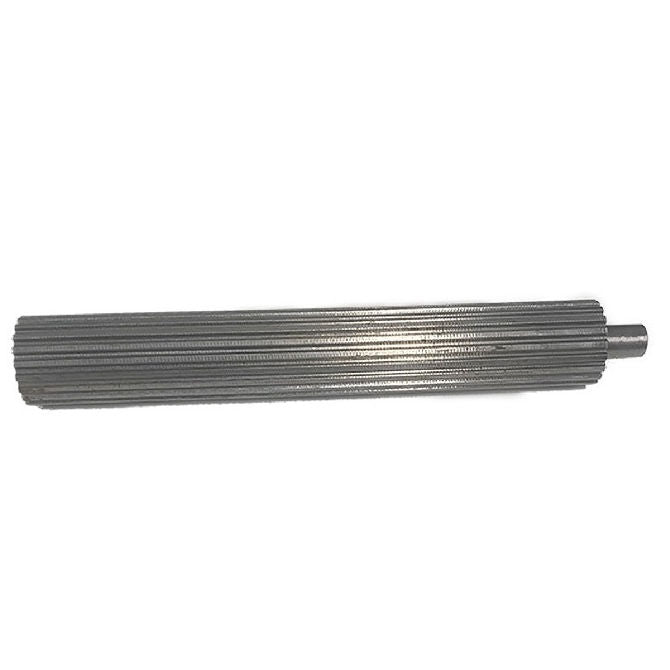

Pulleys - Inch Timing Stock - 12.700mm Pitch H - Carbon SteelCarbon Steel 12.700mm Pitch H Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 36
- Min. Usable Length (L)
250.0
mm
(Equiv. 9.843 in.) - Pitch Diameter (PD)
145.47
mm
(Equiv. 5.727 in.) - Outside Diameter (OD) 144.17 mm
- Shank Diameter (D1) 25.40 mm
- Shank Length (Sl) 25.4 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 36H-PS10S
- 36HPS10S
