MPL-3629-P - Datasheet
MBA
Category Information

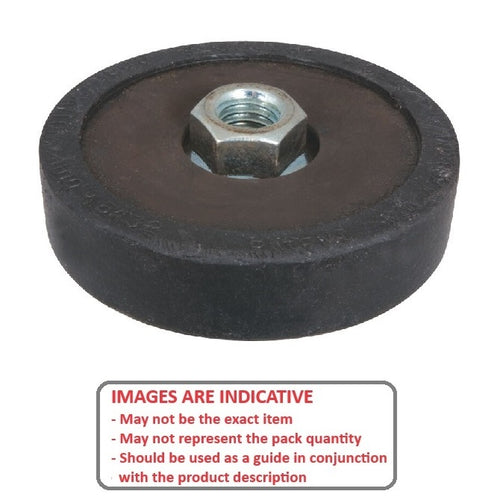

Mounts - Pivotal Levellers - Base Without StudBase Without Stud Pivotal Levellers Mounts. Tough bonded neoprene. Patented pivotal leveler keeps equipment level and dampens an average 85% of noise. Adjusters.

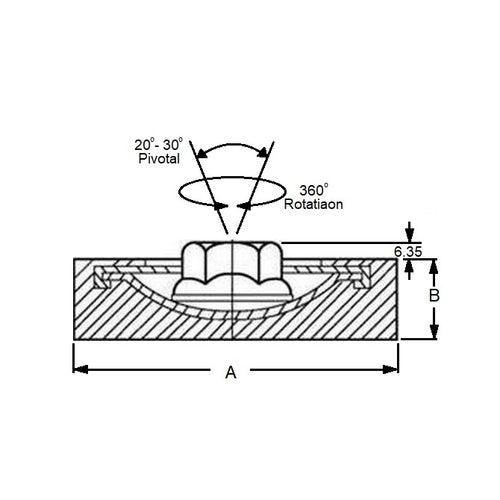

- The mounting nut which holds the stud is molded into the pad in a steel bracket and rotates freely permitting at least 6.35mm of leveling.
- No stud included so you can use your own custom stud.
Product Data
- Max Load : 3628.7 Kg
- Base Diameter (A)
127.000
mm
(Equiv. 5 in.) - Base Height (B)
38.100
mm
(Equiv. 1.5 in.) - Thread Size 3/4-10 UNC (19.05mm)
- Type Round
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- 63965K65
- TPL-545
- TPL545
