MBN2-0363-42-1270 - Datasheet

MBA

Category Information

Mounts - Base Neoprene Style 2

Base Neoprene Style 2 Mounts. This is the main category in this series

    Product Data

    • Rated Load : 362.900 kg (lbs)
    • Style D
    • Length (A) 136.525 mm
      (Equiv. 5.375 in.)
    • Height (B) 42.069 mm
    • Bolt Centres (C) 136.525 mm
    • D 12.70 mm
    • F 13.49 mm
    • H 3.18 mm
    • 12.7mm Hole (No Thread) Thread
    • Durometer 50
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • KR612
    • KR-61-2
    View full details

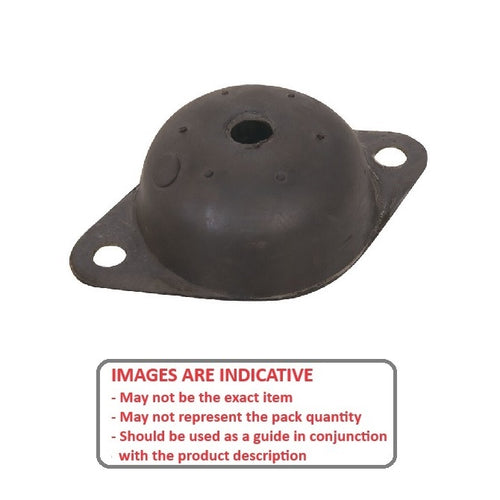

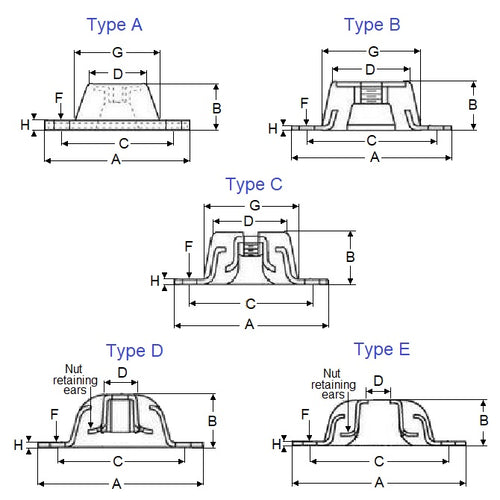

    MBN2-0363-42-1270DiagramMBN2-0363-42-1270Image
