MSM-064C-032-CCCRP - Datasheet
MBA
Category Information

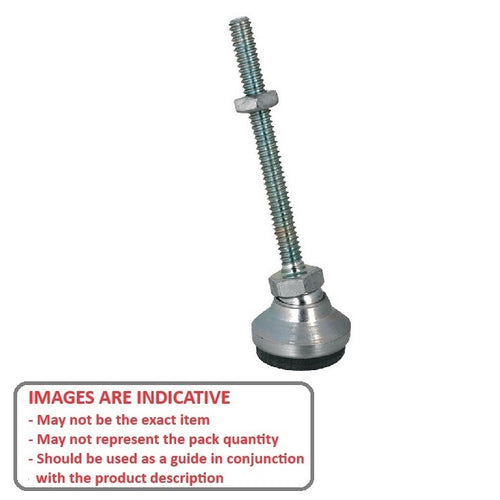

Mounts - Levelling Studded - Swivel - Clear Chromate - Rubber PaddedRubber Padded Clear Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
128.2
mm
(Equiv. 5.047 in.) - Thread Length (F) 31.8 mm
- Base Height (E) 7.14 mm
- Overall Height 160.0 mm
- Load Rating 360 Kg
- Finish Clear Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 12.700 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K82
- MSM0370064CCCR
- TES0
- TES-0
