SP1-064-028B-036-095-C - Datasheet
MBA
Category Information

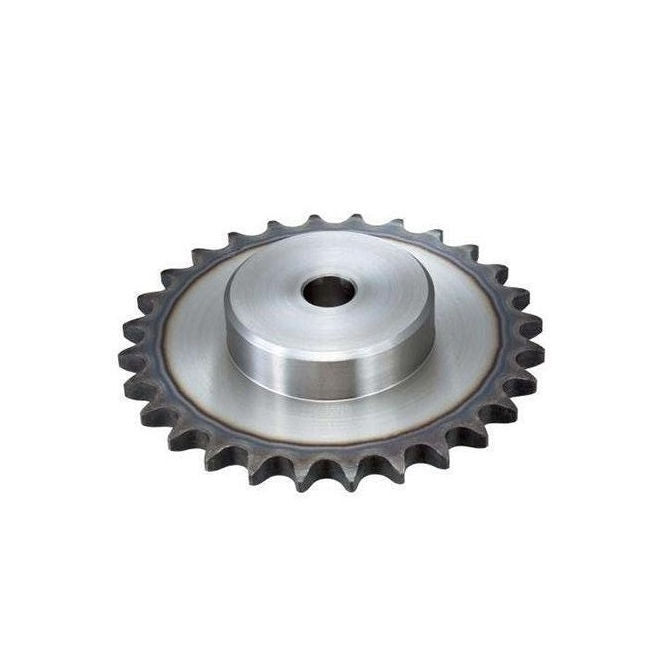

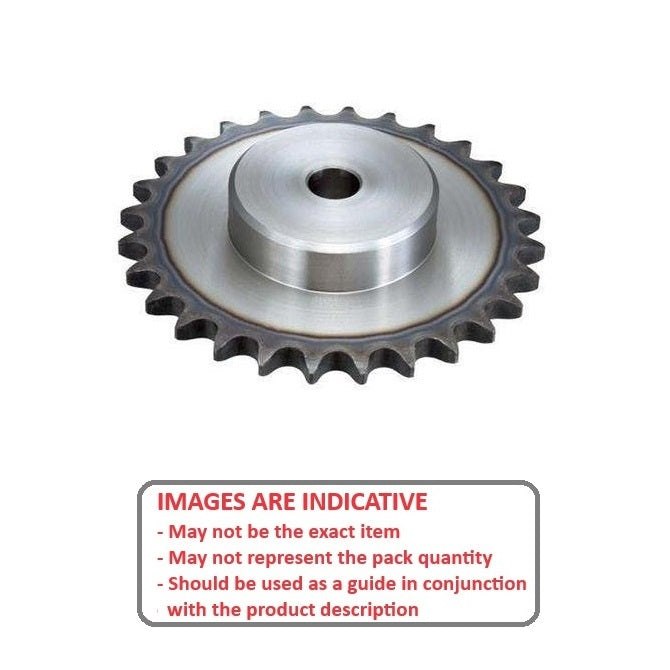

Sprockets - Roller Chain - Simplex - 25-1A - With Boss - Plain BorePlain Bore With Boss 25-1A Simplex Roller Chain Sprockets. 25-1 ASA 1/4 Inch. With unfinished bore.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Match with 6.35mm simplex chain
- American Standard 25-1 - 1/4 inch
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 36
- PCD
72.74
mm
(Equiv. 2.864 in.) - Hub Diameter (D1)
38.10
mm
(Equiv. 1.5 in.) - Overall Width (E) 15.88 mm
- Standard Number 25-1A
- Type / Rows Type 3
- Approx Pilot Bore (d) 9.525
- Locking Method No Locking
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 25B36
- A6C7-25B36
- A6C725B36
