IP-224RS - Datasheet
MBA
Category Information

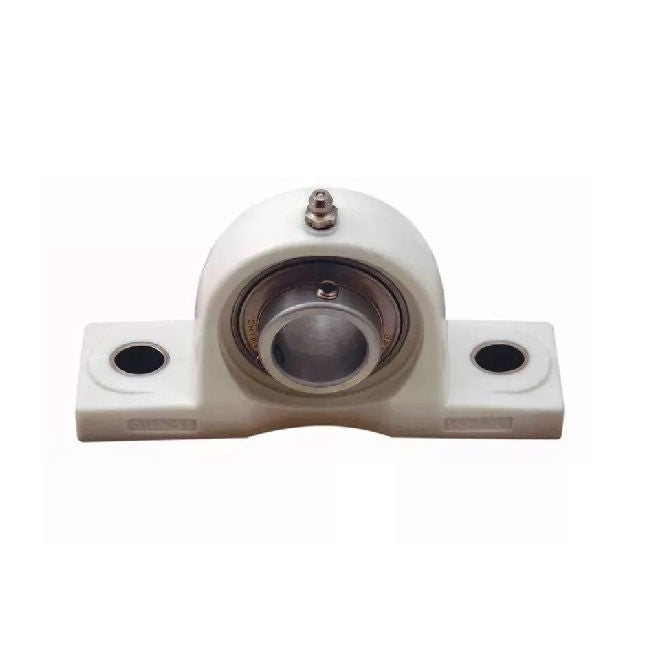

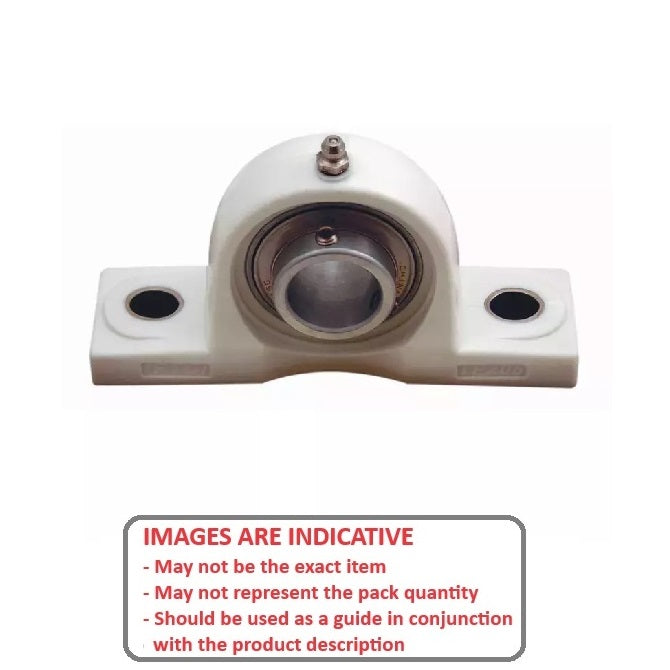

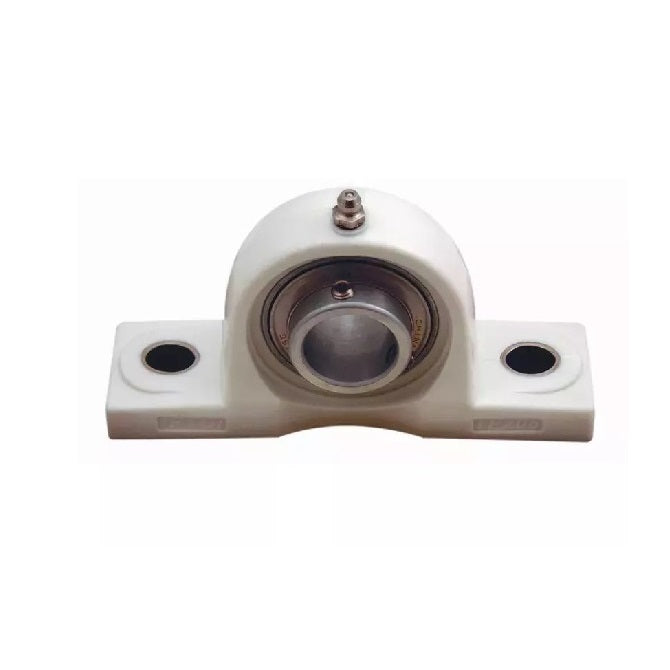

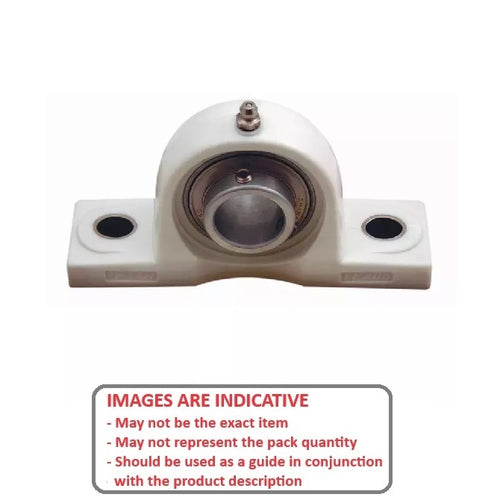

Housing and Bearing Assembly - Pillow Block - Thermoplastic and SteelThermoplastic and Chrome Steel Pillow Block Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC

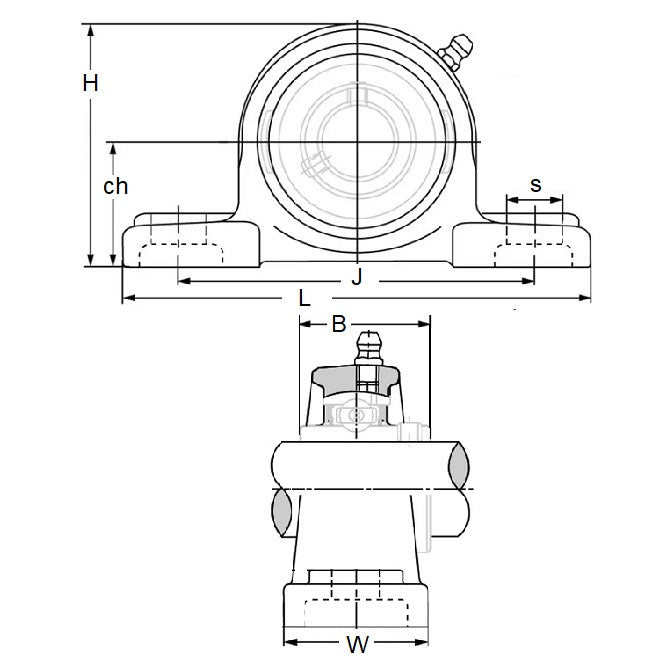

Product Data
- Inside Diameter
:
36.513
mm
(Equiv. 1.438 in.) - Centre Height (A)
47.625
mm
(Equiv. 1.875 in.) - Length (B)
168.275
mm
(Equiv. 6.625 in.) - Width (C) 48.420 mm
- Foot Height (D) 17.460 mm
- Bolt Centres (E) 127.000 mm
- Bolt Hole Size (G) 18.256 mm
- Height (H) 93.663 mm
- K 17.501 mm
- L 25.400 mm
