MBN2-0036-25-0793C - Datasheet

MBA

Category Information

Mounts - Base Neoprene Style 2

Base Neoprene Style 2 Mounts. This is the main category in this series

    Product Data

    • Rated Load : 36.300 kg (lbs)
    • Style A
    • Length (A) 79.375 mm
    • Height (B) 25.400 mm
    • Bolt Centres (C) 60.325 mm
    • D 30.16 mm
    • G 38.10 mm
    • F 8.73 mm
    • H 4.76 mm
    • Thread 5/16-18
    • Durometer 50
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • 64875K62
    • Reid Tool® KR-63-2
    • KR632
    View full details

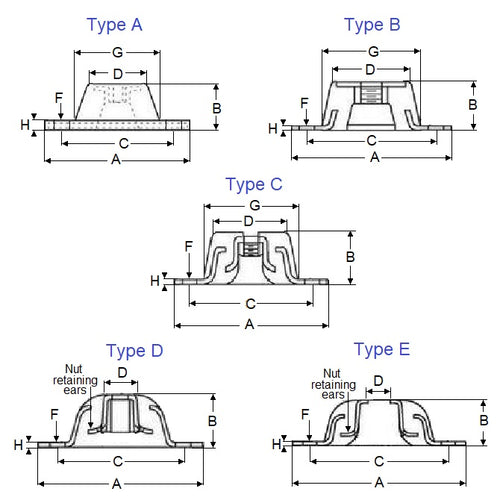

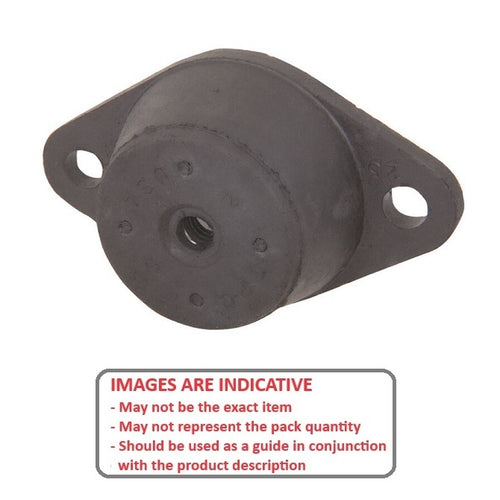

    MBN2-0036-25-0793CDiagramMBN2-0036-25-0793CImage
