Miniature Bearings Australia
KF060M-36-FIT-WR - Datasheet
MBA
Category Information

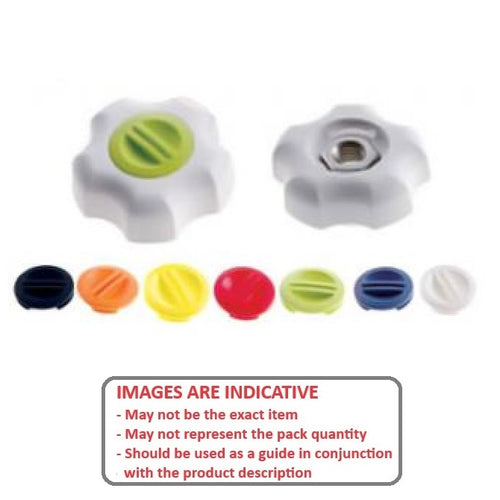

Knobs - Thumb - For Hex Head ScrewFor Hex Head Screw Thumb Knobs. These plastic knobs fit hex head bolts or set screws, not socket cap screws.
- An expanded range may be available on special order. Please enquire.
- To fit Hex Head bolts or Set Screws Screws (Not included)
- Screw secured in hex recess inside the knob with a twist turn plastic cap
- Made From Plastic
Product Data
- Suitable Hex Screw Thread : M6

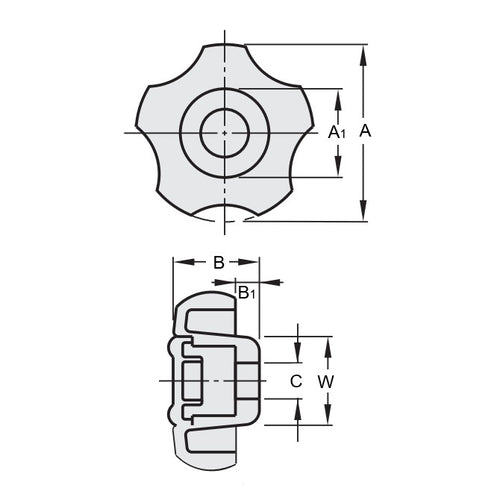

- Knob Diameter (A)
36.0
mm
(Equiv. 1.417 in.) - Knob Thickness (B)
20.0
mm
(Equiv. 0.787 in.) - Knob / Cap Colour White / Red
- Style Fit Own Screw
- Screw Hex AF 10 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- KF060M36FITR
