NRV-0350-080-W-ZZ - Datasheet
MBA
Category Information

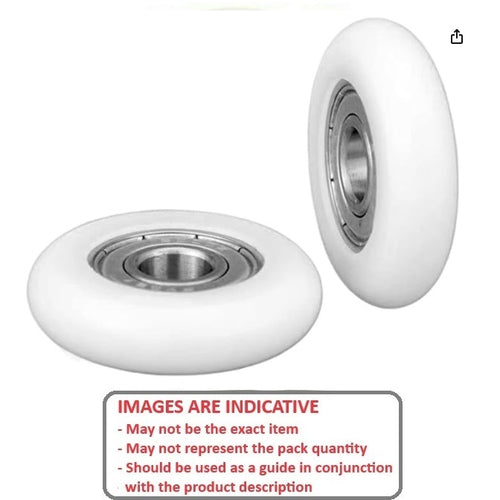

Rollers - Nylon Tyre Through Bore ConvexNylon Tyre Through Bore Convex Rollers. Nylon tyred rollers for cabinet doors, gym equipment etc. Commonly found in rowing machines.
Product Data
Nylon tyre OD for popular exercise rower machines

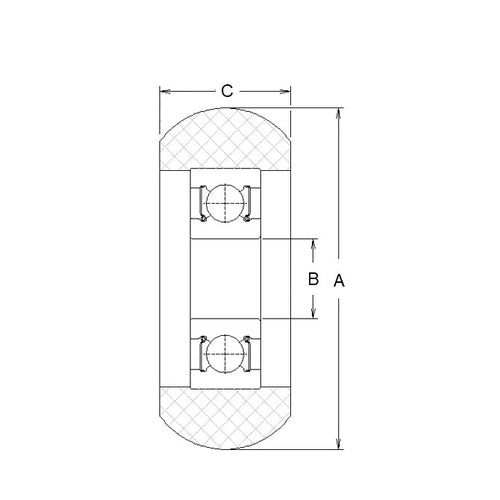

- Outside Diameter (A)
:
35.00
mm
+/- 0.2
(Equiv. 1.378 in.) - Inside Diameter (B)
8.00
mm
+ 0 / - 0.008
(Equiv. 0.315 in.) - Bearing Width (E)
7.0
mm
(Equiv. 0.276 in.) - Roller Width (C) 8.0 mm
- Tyre Radius 4.0 mm
- Weight 12 g
- Load Capacity 35 kg
- Colour White
- Type No Extended Rings on Bearing
- Material Chrome Steel and Acetal
Product Compliance and Data
Additional Resources
Cross References
- NRV0350080ZZ
