E32207J - Datasheet

MBA

Category Information

Bearings - Tapered Roller Set - Single Row - Metric

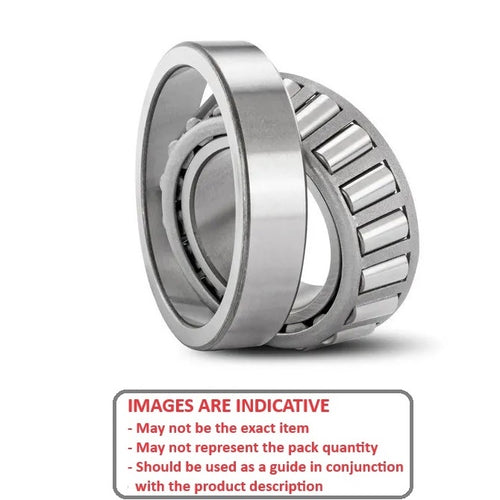

Metric Single Row Tapered Roller Set Bearings. Includes cup and cone

  • Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
  • Matched sets include the cup and the cone.
  • An expanded range may be available on special order. Please enquire.

Product Data

  • Inside Diameter : 35 mm
    (Equiv. 1.378 in.)
  • Outside Diameter 72 mm
    (Equiv. 2.835 in.)
  • Assembled Width 24.250 mm
    (Equiv. 0.955 in.)
  • Cone Width 23 mm
  • Cup Width 19 mm
  • Radius Cone (min) 1.500 mm
  • Radius Cup (min) 1.500 mm
  • Basic Dynamic Load 70000 N
  • Basic Static Load 83000 N
  • Limiting Speed for Grease 5400
  • Limiting Speed for Oil 7200
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    View full details
    E32207JDiagramE32207JImage
