Miniature Bearings Australia
NMI-0350-0550-0200-O-2RS - Datasheet
MBA
Category Information
Bearings - Needle Roller with Inner Ring - MachinedMachined Needle Roller with Inner Ring Bearings. This is the main category in this series
- These needle roller bearings include the matching inner ring.
Product Data

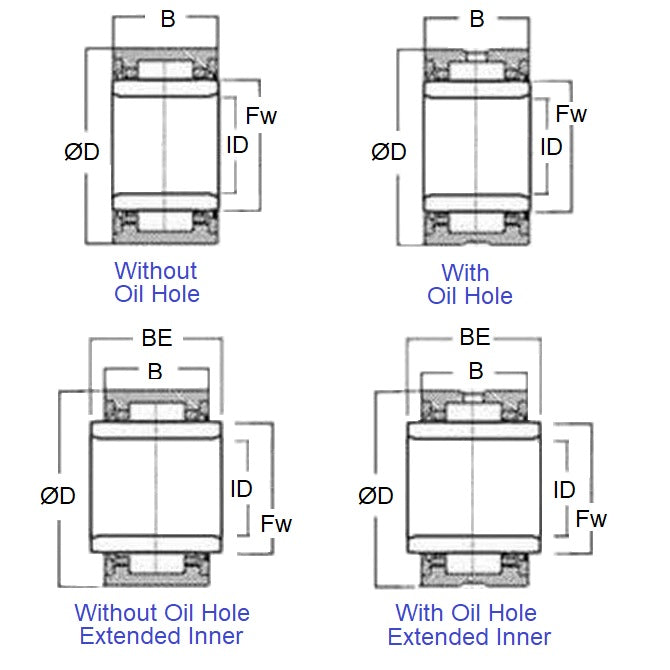

- ID (d)
:
35.000
mm
(Equiv. 1.378 in.) - OD (D)
55.000
mm
(Equiv. 2.165 in.) - Width (B)
20.000
mm
(Equiv. 0.787 in.) - Extended Inner (BE) 21.000 mm
- Seals Yes
- Basic Dynamic Load Rating 3070 KGF
- Basic Static Load Rating 4720 KGF
- Oil Hole Oil Hole
- Inner Ring OD (Fw) 42.000
- Material Chrome Steel
