BTU0035-006-F-Z-SL-FH - Datasheet
MBA
Category Information

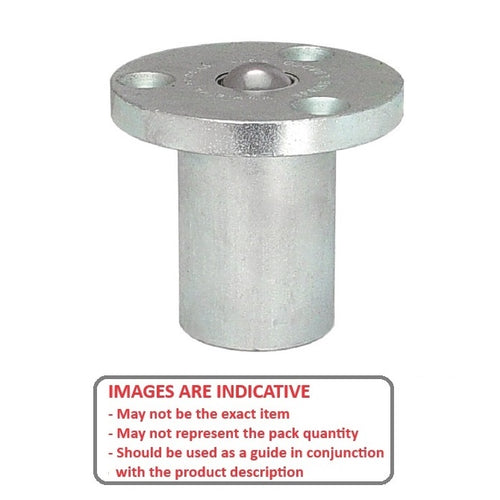

Ball Transfer Units - Spring Loaded - Flanged - Zinc PlatedZinc Plated Flanged Spring Loaded Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Applications includes guillotines, presses, moulding machines, base of machines for easy handling, press brakes and shock loading.
- Max Load is applicable when used as a transfer, not as a castor
- Case: Zinc plated Mild Steel, Ball: Carbon Steel 60-66HRC
Product Data
- Supp. Load : 35 kg

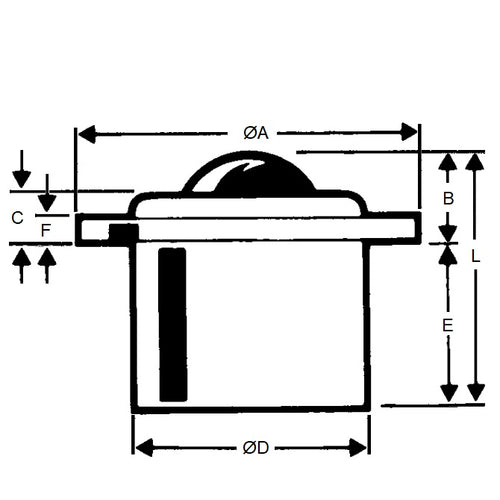

- Height from Base (B)
5.9
mm
(Equiv. 0.232 in.) - Body Diameter (D)
44.5
mm
(Equiv. 1.752 in.) - Overall Height 67.1 mm
- Ball Diameter 25.4 mm
- Body Height 44.5 mm
- Flange Diameter 76.2 mm
- Flange Thickness 7.9 mm
- Type A
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- SKF-1018
- SKF1018
- BTSU25A
- BTSU-25A
